Rovix Motion
Rovix Motion
Motor Customized Specification available upon request.

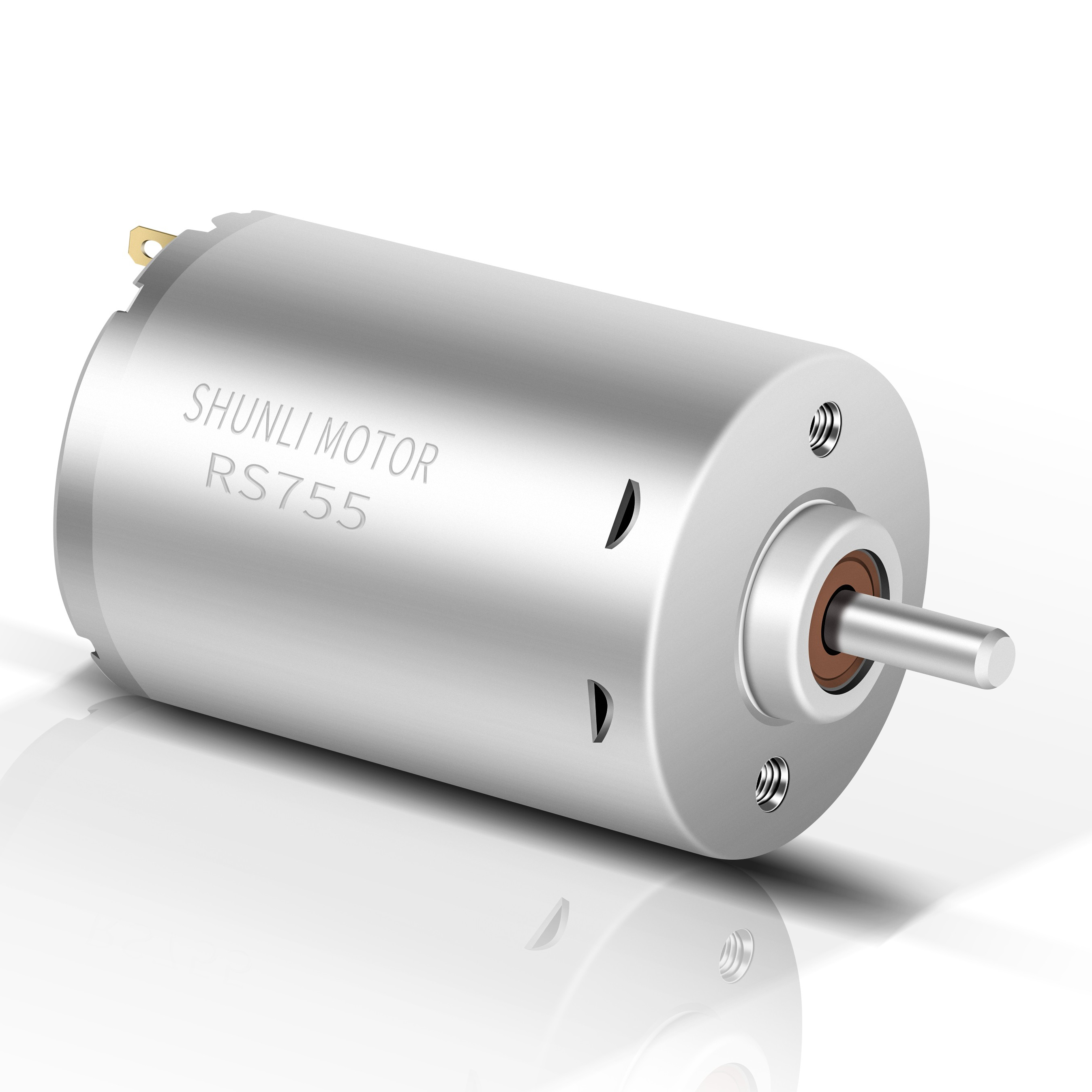

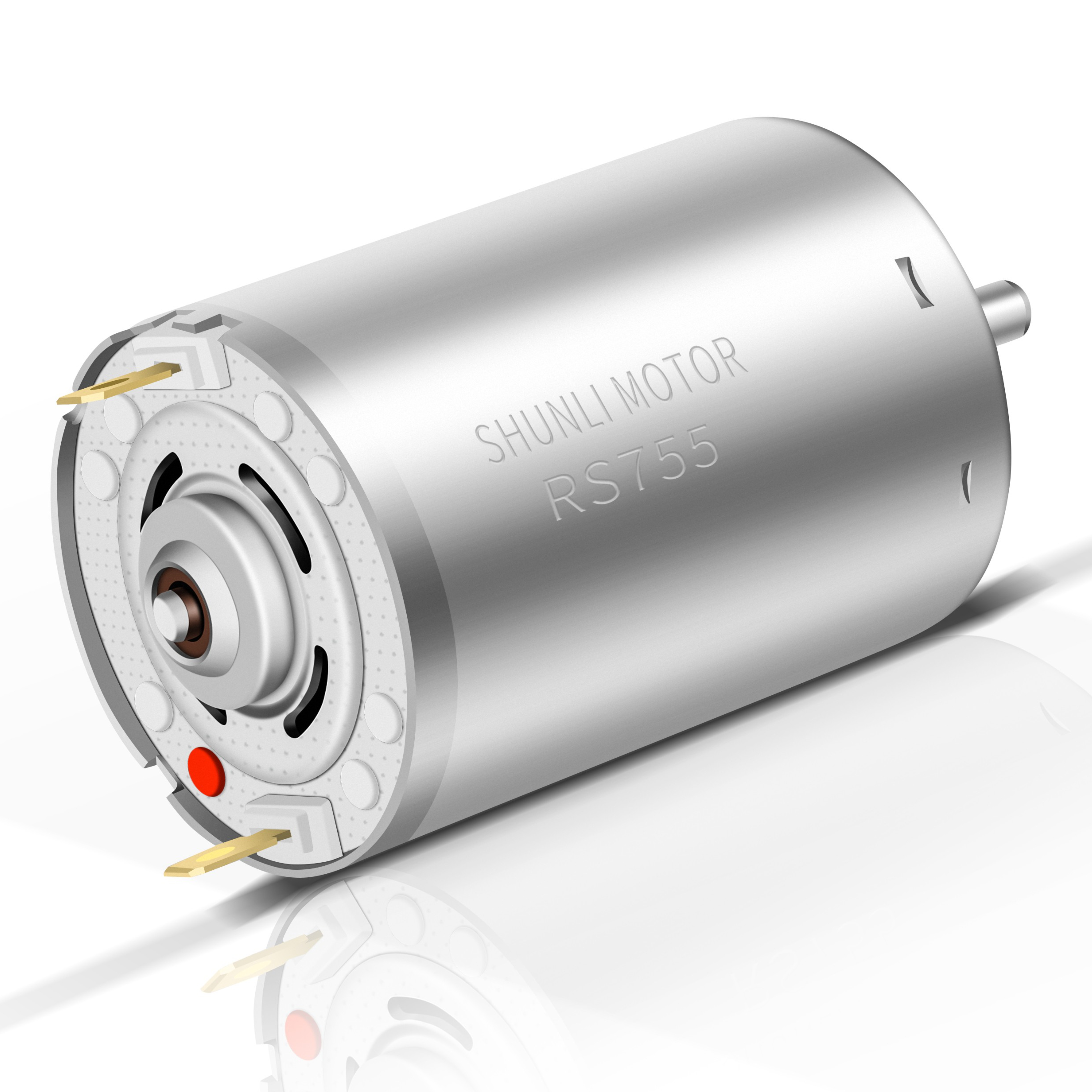

RS - 755 H
RS - 775 H
Note: The length of shaft can be customized.
| Model | Rated Voltage (V) | No-Load | Rated | Stall | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | |
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | |||
| RS-770H | 6.0~12.0 | 12 VDC | 15000 | 2.2 | 13177 | 15.91 | 81/826.2 | 111.8 | 115 | 666.9/6802 |
| RS-775H | 6.0~24.0 | 24 VDC | 3478 | 0.15 | 2925 | 0.75 | 44.4/452.9 | 13.35 | 4.07 | 245.7/2506 |
Specializing in motor production for more than 14 years, our professional R&D team and mature management ensure a superior experience.
From material receipt to final shipment, every step is carefully checked. Quality is the basis of our development.
Gold Status
High credibility and proven track record.
On-Time Delivery
100% commitment to timely arrival.
Fast Sampling
Standard samples in 2 weeks; Custom in 3 weeks.
Quick Response
Messages replied within 2 hours.
