Rovix Motion
Rovix Motion
Motor Customized Specification available upon request.

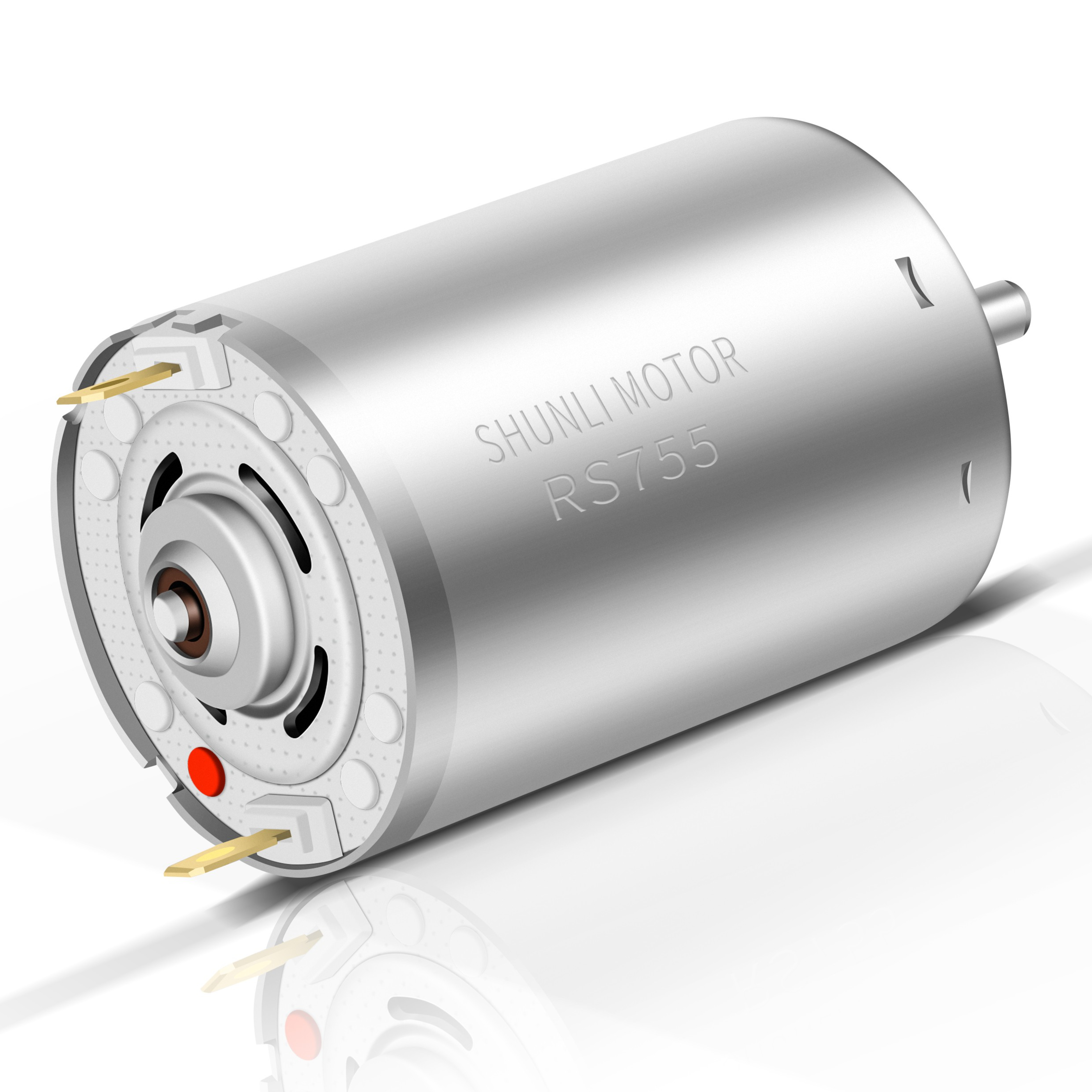

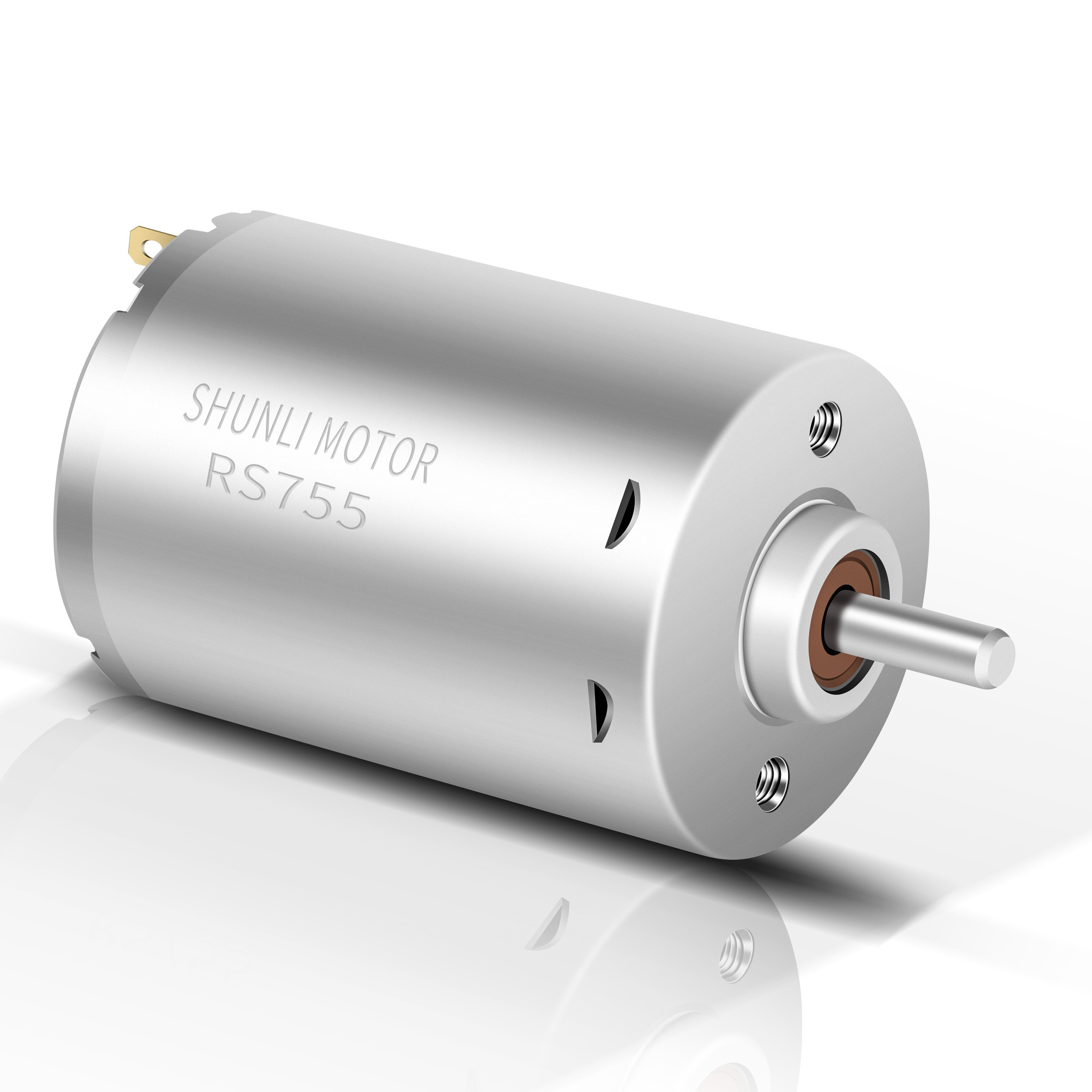

Model: RS-755 H
Model: RS-775 H

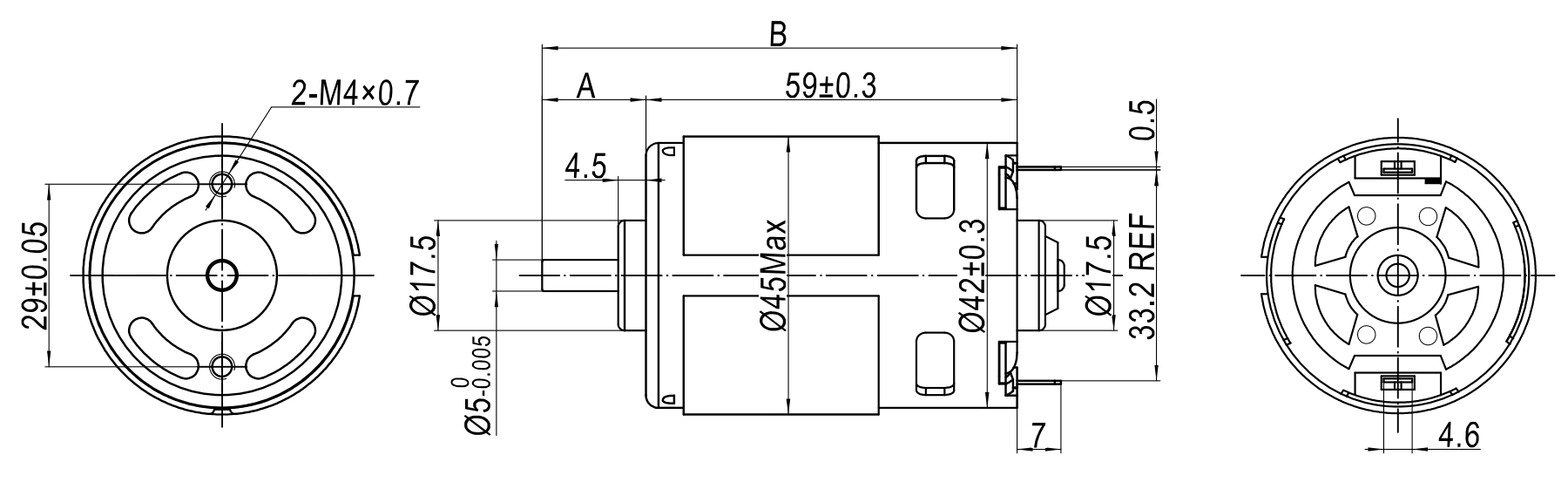

The length of shaft can be customized.
| PMDC MOTOR Technical Date | |||||||||||
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m) | Power (W) | Current (A) | Torque (mN.m) | ||
| RS-770H | 8523R | 6.0~12.0 | 12 VDC | 15000 | 2.2 | 13177 | 15.91 | 81 | 111.8 | 115 | 666.9 |
| RS-775H | 25110R | 6.0~24.0 | 24 VDC | 3478 | 0.15 | 2925 | 0.75 | 44.4 | 13.35 | 4.07 | 245.7 |
We are a factory specialized in producing motors for more than 14 years. With multiple production bases, a professional R&D team, mature management, and experienced engineers, we ensure a professional experience for every client.
To guarantee quality, every step from raw material reception to final shipment is carefully checked. Quality is the foundation of our development.
✔ High credibility and trusted seller status.
✔ 100% on-time delivery rate to ensure your project stays on schedule.
✔ Standard samples produced within 2 weeks; customized samples within 3 weeks.
✔ Timely response: your messages will be replied to within 2 hours.
