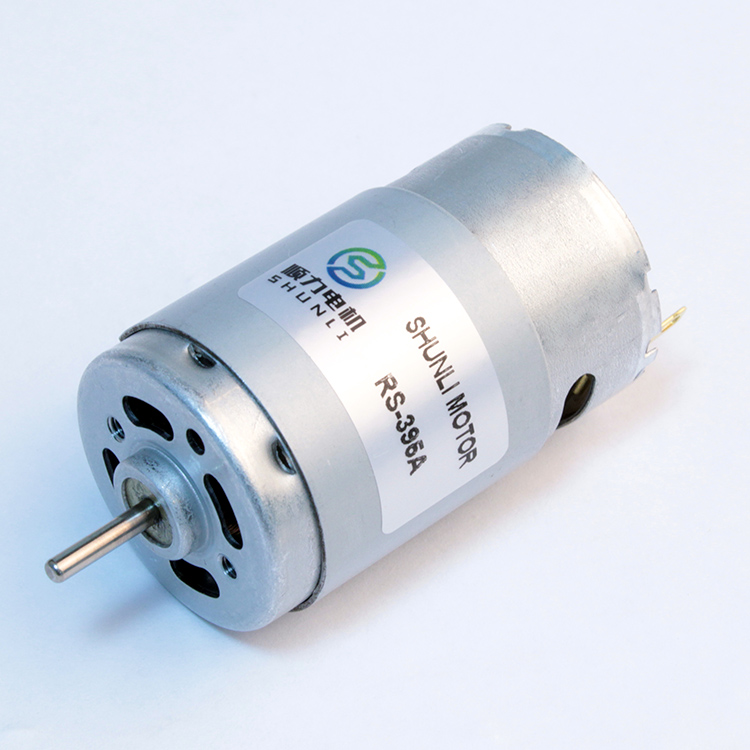

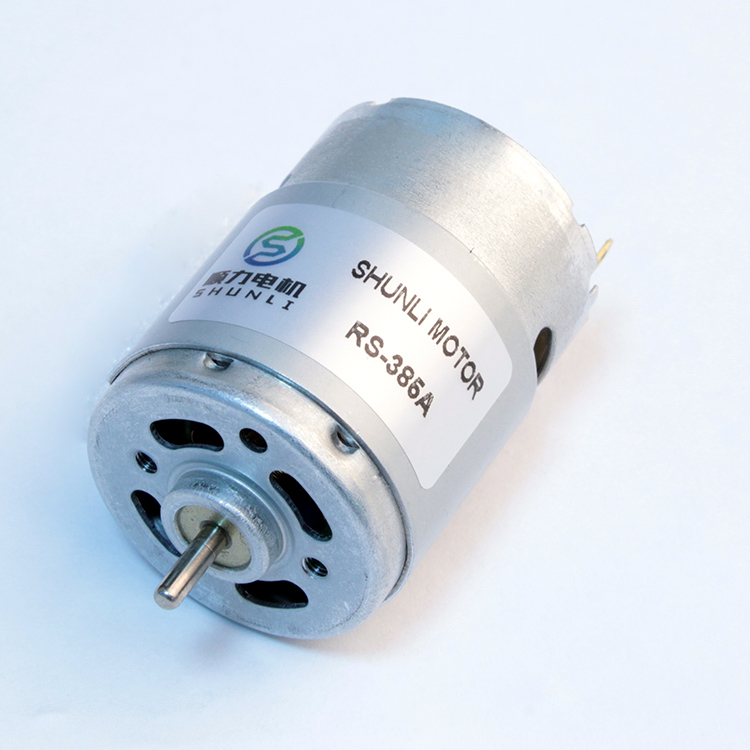

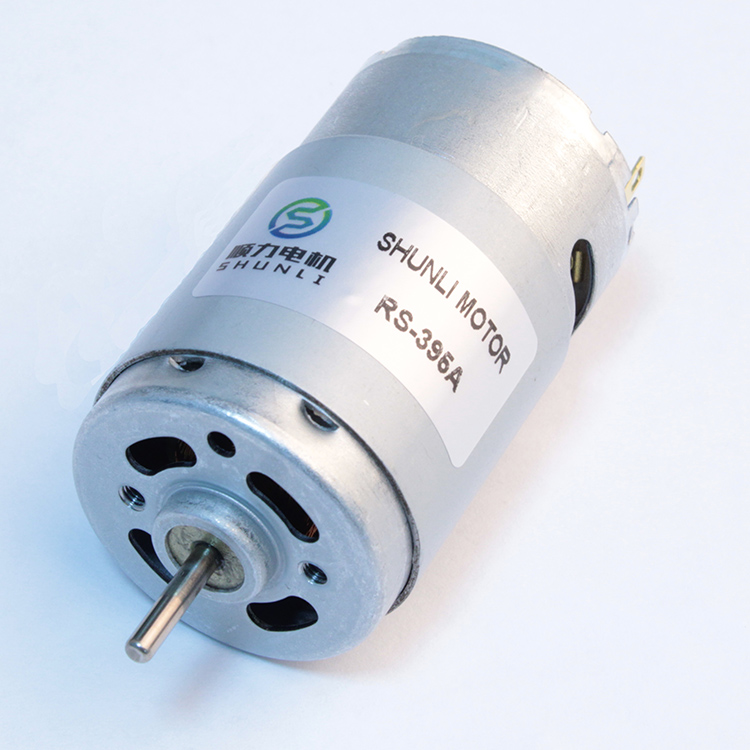

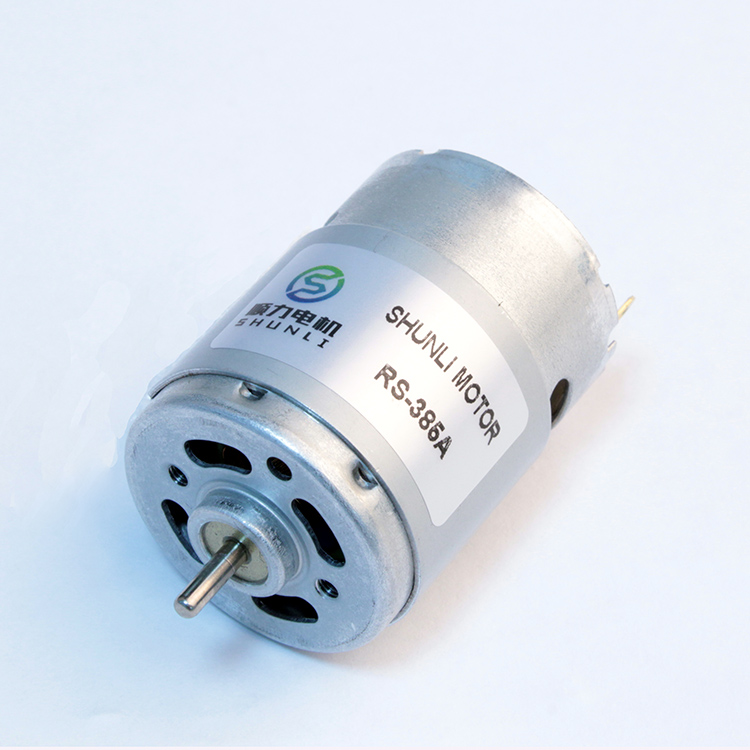

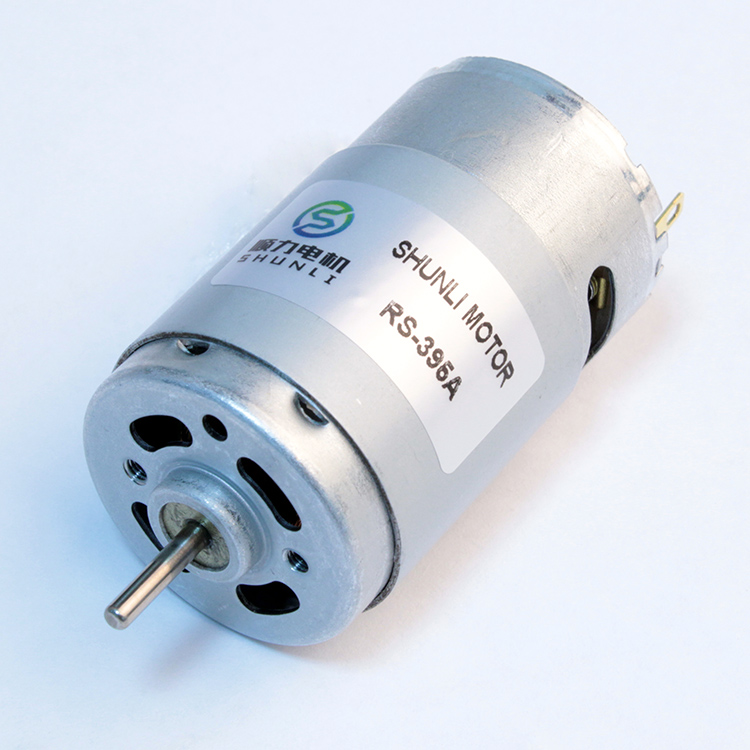

390 Dc Motor for Machine Fan From Shenzhen Supplier 12v 6000rpm Motor

Send Inquiry

Product Description

390 Dc Motor for Machine Fan From Supplier 12v 6000rpm Motor

Product Description

390 DC Motor for Machine Fan 12v 6000rpm Motor

Product Details

Motor Customized Specification, Please contact us.

Reference Drawing

------ RS - 365

------ RS - 385

------ RS - 395

The length of shaft can be customized, Please contact us.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-390SH	20156R	6.0~12.0	12VDC	5000	0.08	4243	0.33	6.07 / 61.9	2.72	2.22	42.2 / 430
RS-390SH	2975	6.0~12.0	12VDC	12000	0.29	10165	0.33	5.75 / 58.6	1.31	8.9	80.4 / 820
RS-395SH	15130	6.0~12.0	12VDC	3650	0.66	2949	0.25	5.83 / 59.5	1.8	1.06	30.4 / 310
RS-395SH	15100R	6.0~24.0	24VDC	10300	0.07	8893	0.38	7.09 / 72.3	6.68	2.66	54.9 / 560

Production & Quality Showcase

Frequently Asked Questions (FAQ)

What are the primary applications of the 390 DC motor?

The 390 DC motor is widely used in machine fans, personal cooling devices, RC models, small appliances, and micro tools requiring high speed and reliable torque.

Can the shaft length and motor specifications be customized?

Yes, we support complete customization of shaft length, operating voltage range, rated speed, and output torque to fit your specific device specifications.

What is the typical operating voltage for the RS-390 and RS-395 motors?

Depending on the specific configuration, they typically run between 6.0V to 24.0V DC. The nominal standard operating voltage is usually 12VDC or 24VDC.

How does a 12V 6000RPM motor perform under full load?

Under full load conditions, standard models like RS-390SH operate dynamically depending on the torque required. For instance, a rated speed of 4243 RPM at 6.07 mN.m of torque provides optimal efficiency.

What are the key structural features of these micro PMDC motors?

They feature a compact permanent magnet structure, robust steel casing, copper commutator brushes, and custom-engineered shafts, ensuring low noise and long operational lifetime.
