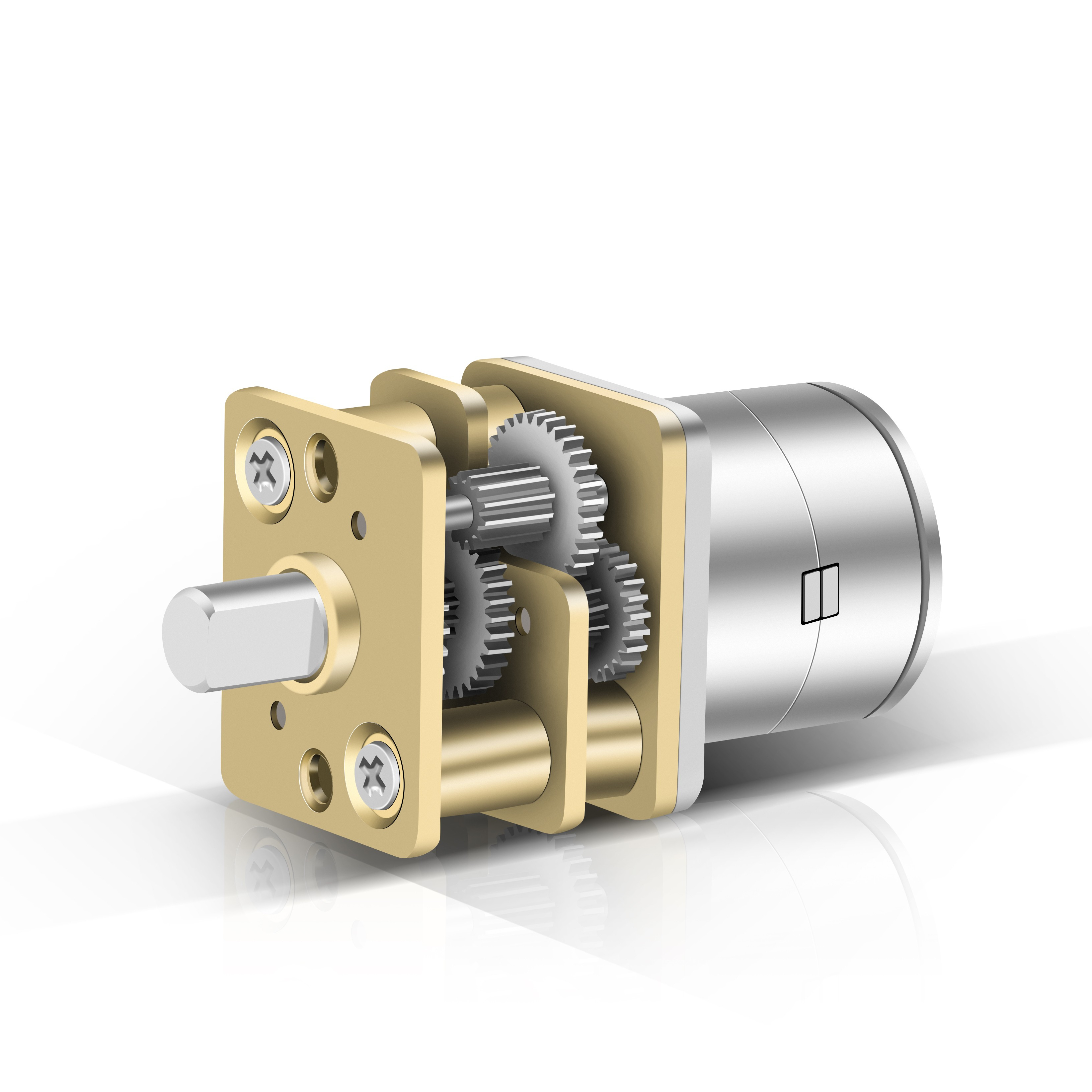

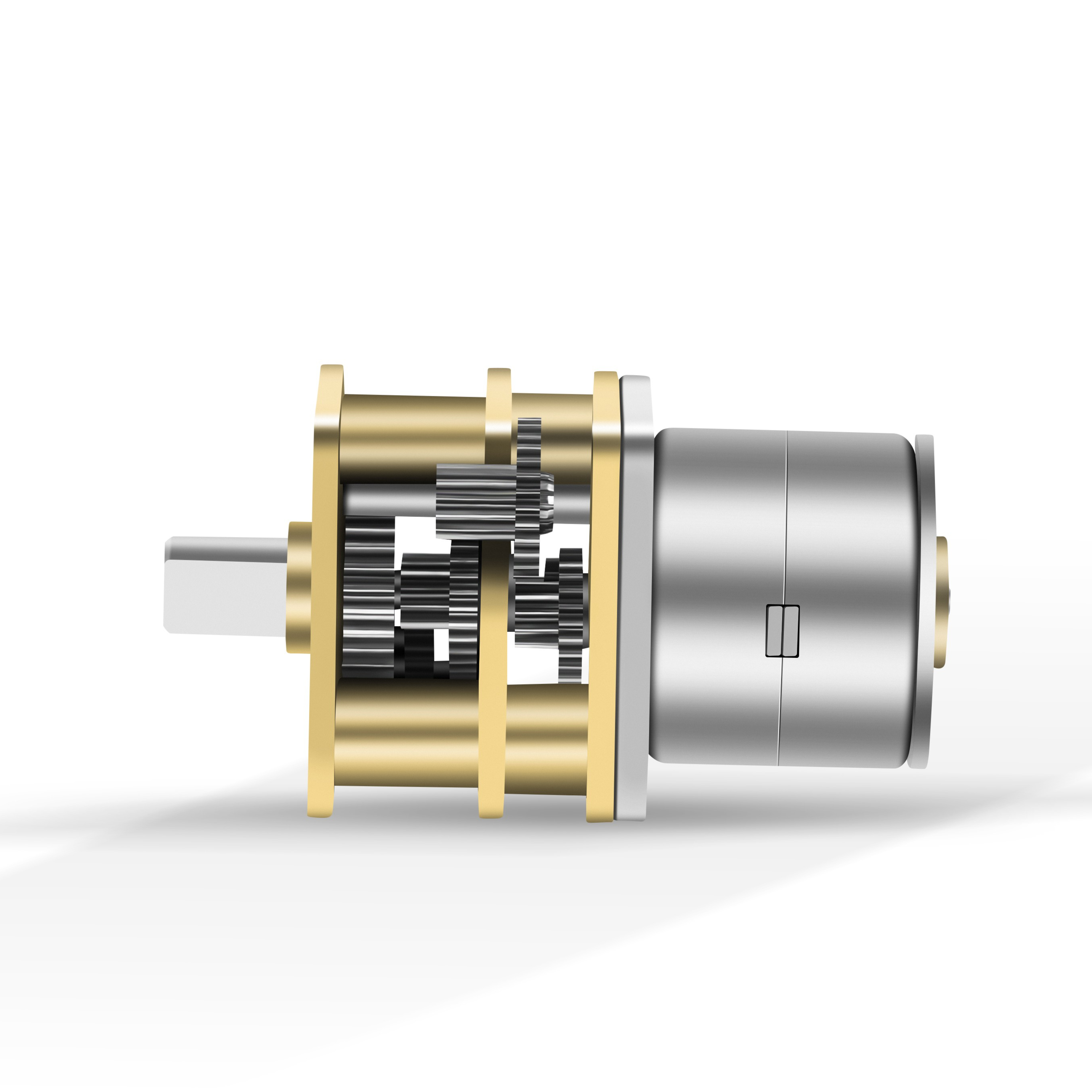

Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner

Product Description

Micro DC Gear Motor Banner
āš™ļø Product Description
Customized 12mm micro dc gear motor: Non captive stepper motor, miniature 5v stepper motor designed for medical equipment and precision instruments.

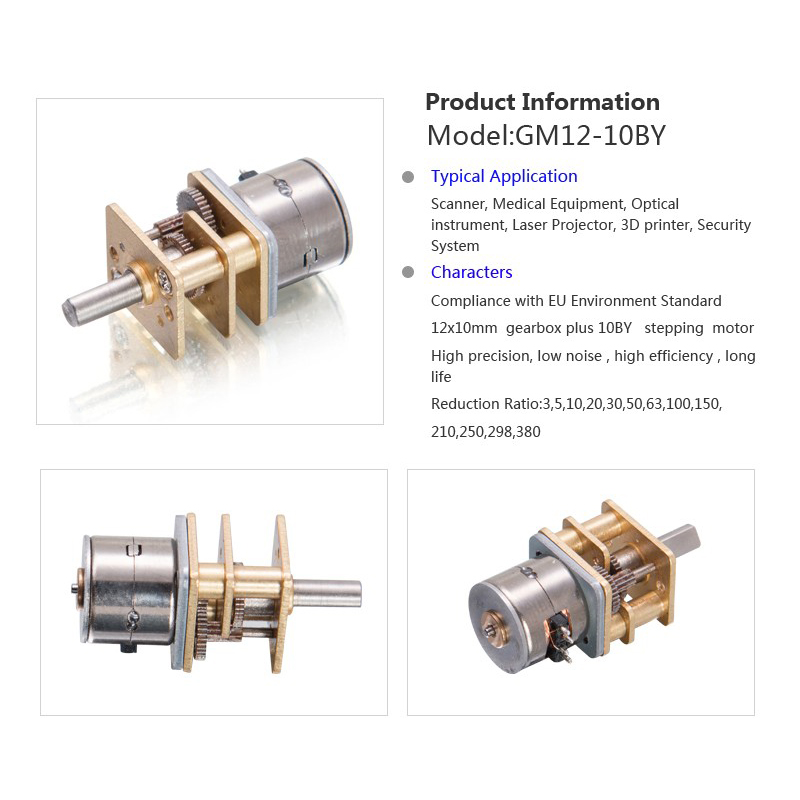

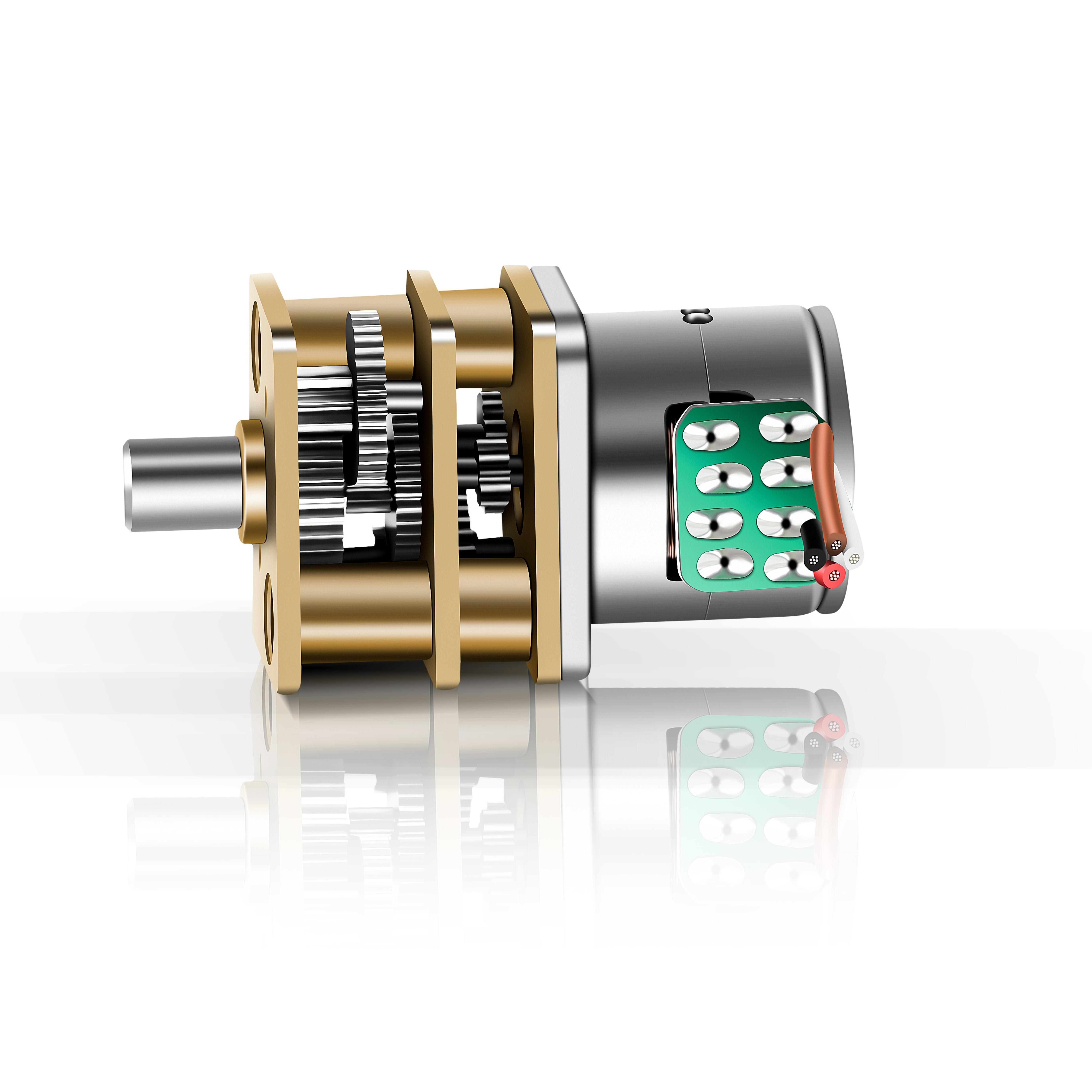

Product Image

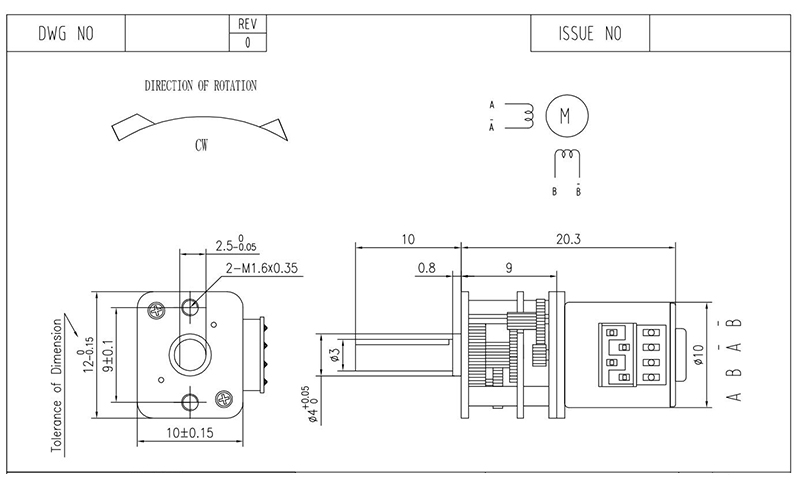

šŸ“ Reference Drawing
Model: GM12-10BY - Customized specifications available upon request.
Technical Drawing
šŸ“Š Gearbox Technical Data
Number of stages 1 2 3 4 5
Ratio 4K / 4.75K 16K / 19K / 22.6K 64K / 74K / 90K / 107K 256K / 304K / 361K / 429K / 509K 1024K to 2418K
Length ā€œLā€(mm) 13.3 16.8 20.3 23.8 27.3
Max. Rated Torque 1.0 Kgf.cm 2.0 Kgf.cm 4.0 Kgf.cm 4.0 Kgf.cm 4.0 Kgf.cm
Max. Break Torque 3.5 Kgf.cm 6.5 Kgf.cm 12.5 Kgf.cm 12.5 Kgf.cm 12.5 Kgf.cm
Efficiency 80%~90% 70%~80% 60%~70% 50%~60% 40%~50%
⚔ Gearmotor Performance
Model Ratio Voltage No-Load Rated Load Stall
Speed (RPM) Current (mA) Speed (RPM) Current (mA) Torque (Kgf.cm) Current (mA) Torque (Kgf.cm)
GMP22M130-64K 1:64 6 VDC 138 ≤ 160 110 ≤ 450 0.95 ≤ 1700 4.2
GMP22M180-256K 1:256 5 VDC 38 ≤ 180 30 ≤ 1050 3.2 ≤ 3900 12.5

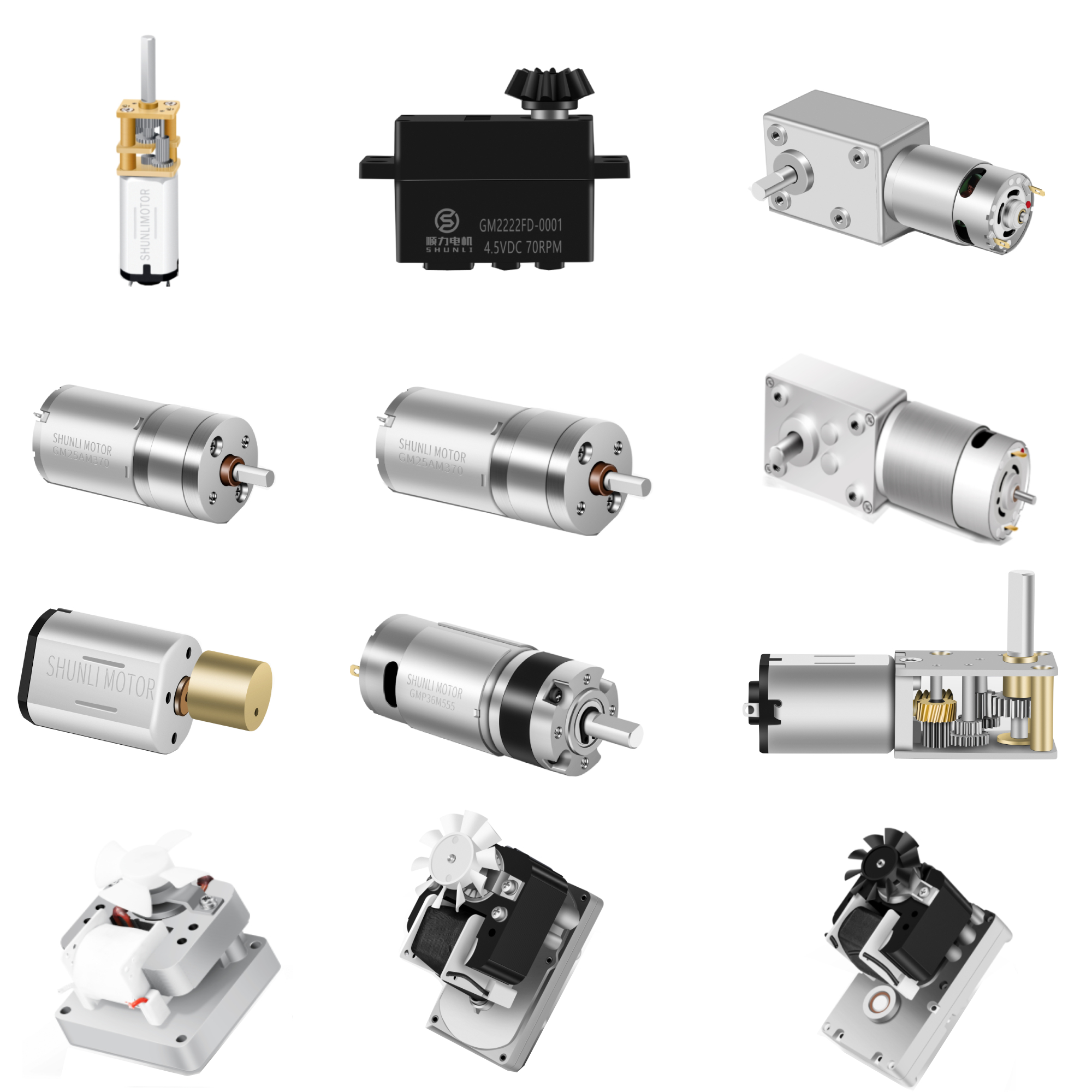

šŸ“ø Product Series Gallery

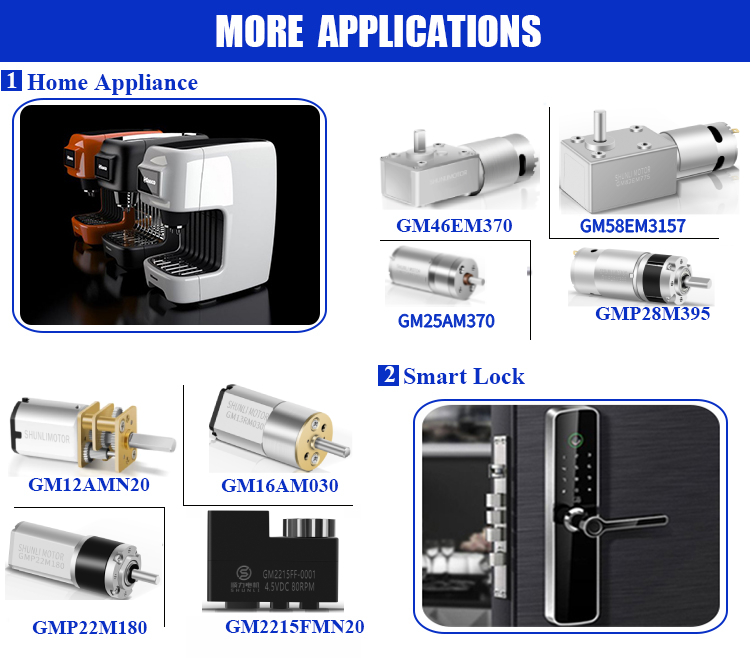

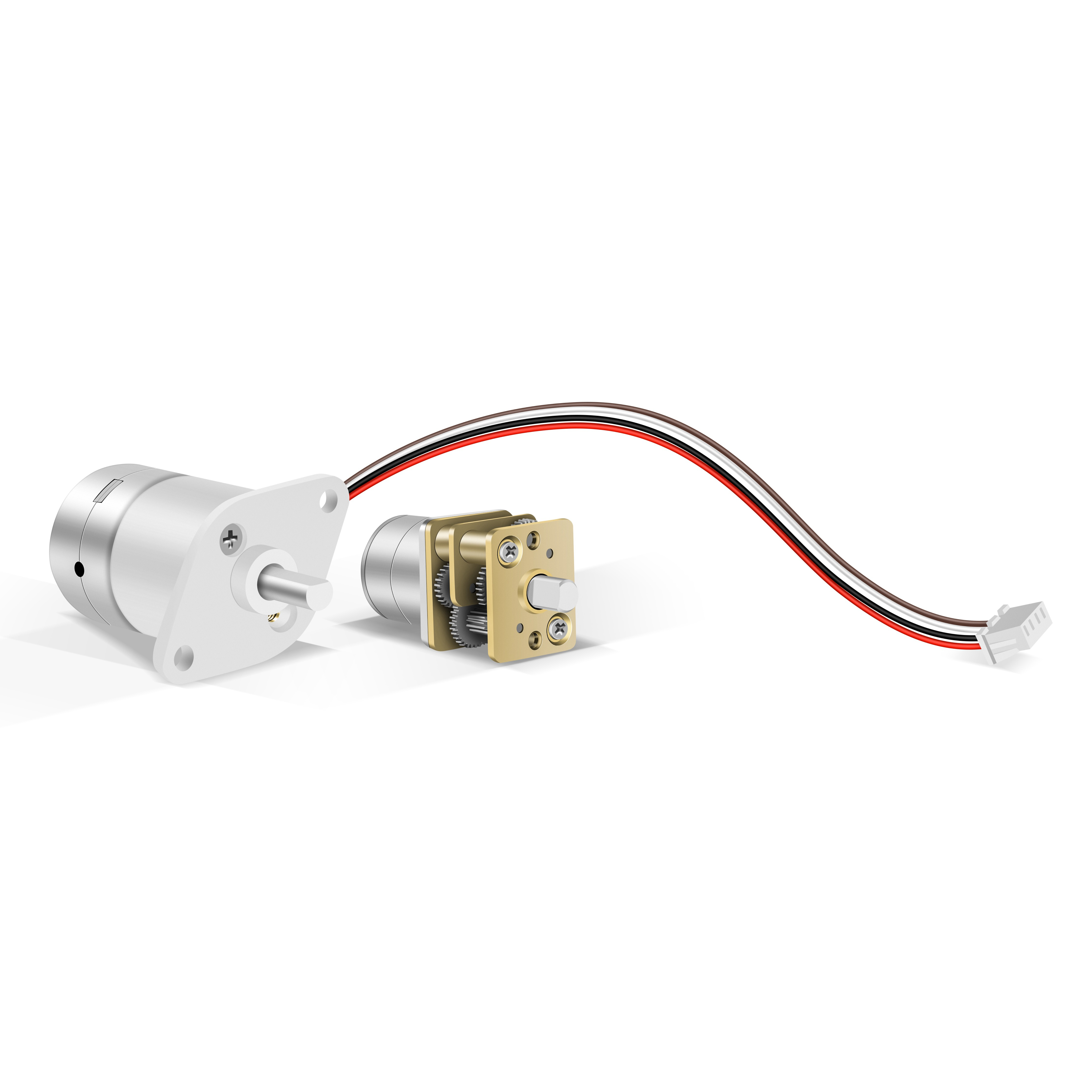

Gear Motor Series 1

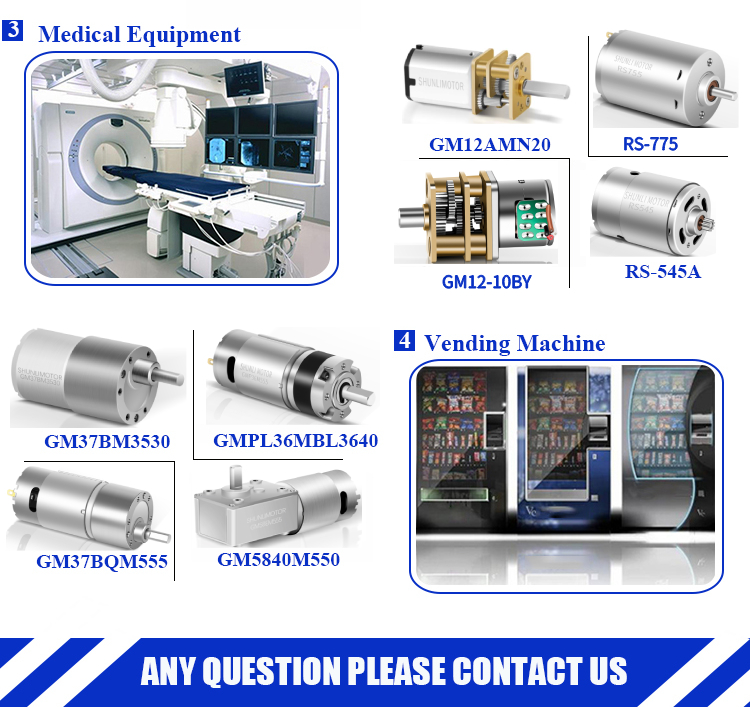

Gear Motor Series 2
šŸ“œ Certifications & Evaluation
Certificates
Customer Evaluation
šŸ­ Production Facility
Production Line
Testing Equipment
ā“ Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors with over 14 years of experience.
2. What are the payment terms for new customers?
We support various secure payment methods including online credit card payments (Visa/MasterCard), PayPal, and TT transfers.
3. Can you customize a motor if I cannot find a suitable one?
Yes, we provide full customization services to match a suitable motor according to your specific requirements.
4. Do your motors have official certifications?
Yes, our motors are CE, FCC, and ISO certified. We can also apply for other specific certifications if required.
5. How do you handle Quality Control?
We utilize professional checking staff at every production stage. Finished products undergo rigorous testing with equipment like Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Noise Testers.
6. What is the typical lead time for customized orders?
Lead times depend on the complexity of the customization; however, our efficient production processes ensure timely delivery following specification approval.
