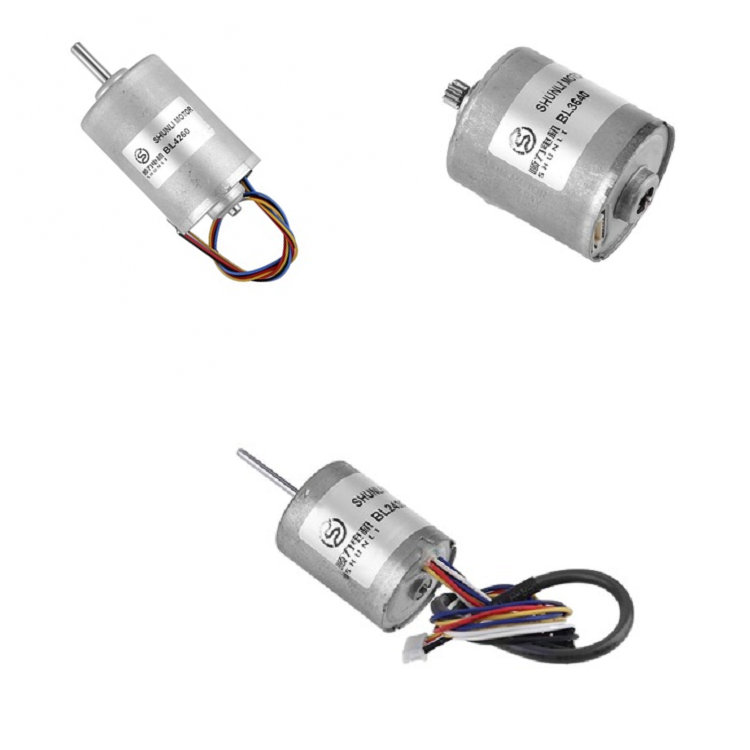

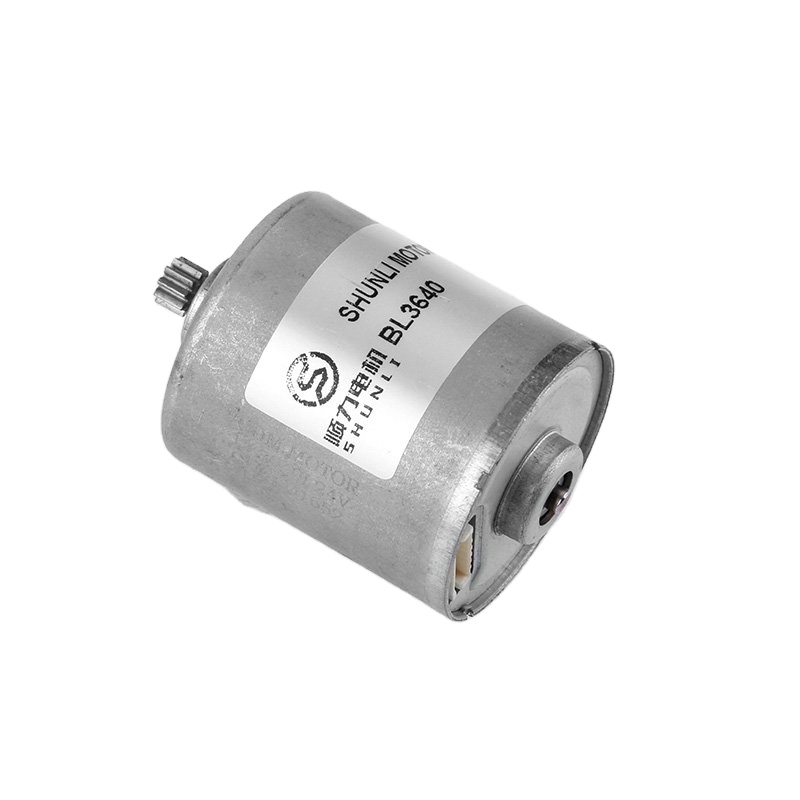

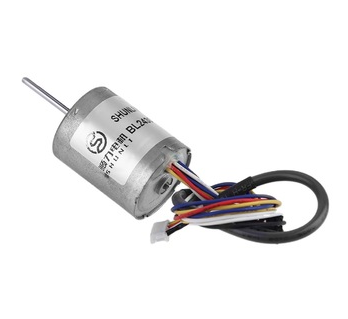

12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan

1 / 5

12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan

Send Inquiry

Product Description

12V 18V 24V High Speed Brushless DC Motor for Fan (20000-40000 RPM)

📋 Product Details

⚙️ Motor Customized Specification Available

📊 Reference Technical Specification

BLDC MOTOR Terminations

PIN NO.	PIN Arrangement
1	VCC
2	FG
3	CW/CCW
4	GND
5	PWM

📄 Reference Datasheet

🖼️ Product Gallery

Frequently Asked Questions (FAQ)

Q1: What are the voltage ratings available for this motor? A1: This high-speed brushless DC motor is available in 12V, 18V, and 24V configurations to suit different power requirements.

Q2: What is the maximum speed this motor can achieve? A2: Depending on the specific model and voltage, this motor can reach speeds of 20,000 RPM, 30,000 RPM, and up to 40,000 RPM.

Q3: What is the torque performance of the 36mm BLDC motor? A3: The motor provides a torque range between 100 G.CM and 150 G.CM, making it ideal for high-speed fan applications.

Q4: Does the motor support speed control? A4: Yes, the motor features a PWM (Pulse Width Modulation) pin for precise speed control and an FG (Frequency Generator) signal for speed feedback.

Q5: Can I change the rotation direction of the motor? A5: Yes, the motor includes a CW/CCW (Clockwise/Counter-Clockwise) termination pin, allowing for easy direction switching.

Q6: Are customized specifications available for specific projects? A6: Absolutely. We offer customized motor specifications to meet your unique technical requirements regarding speed, torque, and dimensions.

Product Detail

12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan

Product Description

12V 18V 24V High Speed Brushless DC Motor for Fan (20000-40000 RPM)

Frequently Asked Questions (FAQ)
