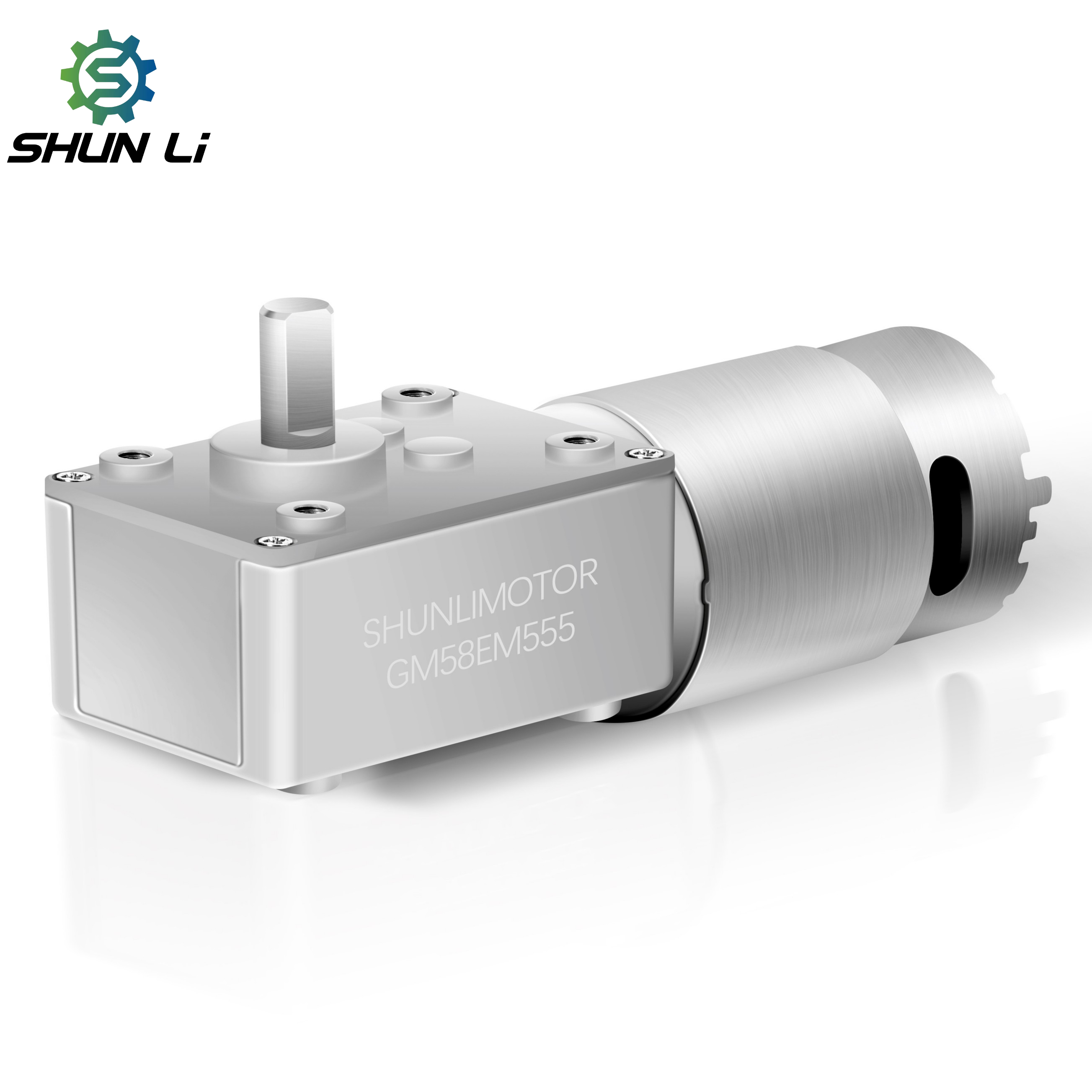

OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
1 / 5
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor

OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor

Send Inquiry

Product Description

Product Presentation
!

Product Specifications

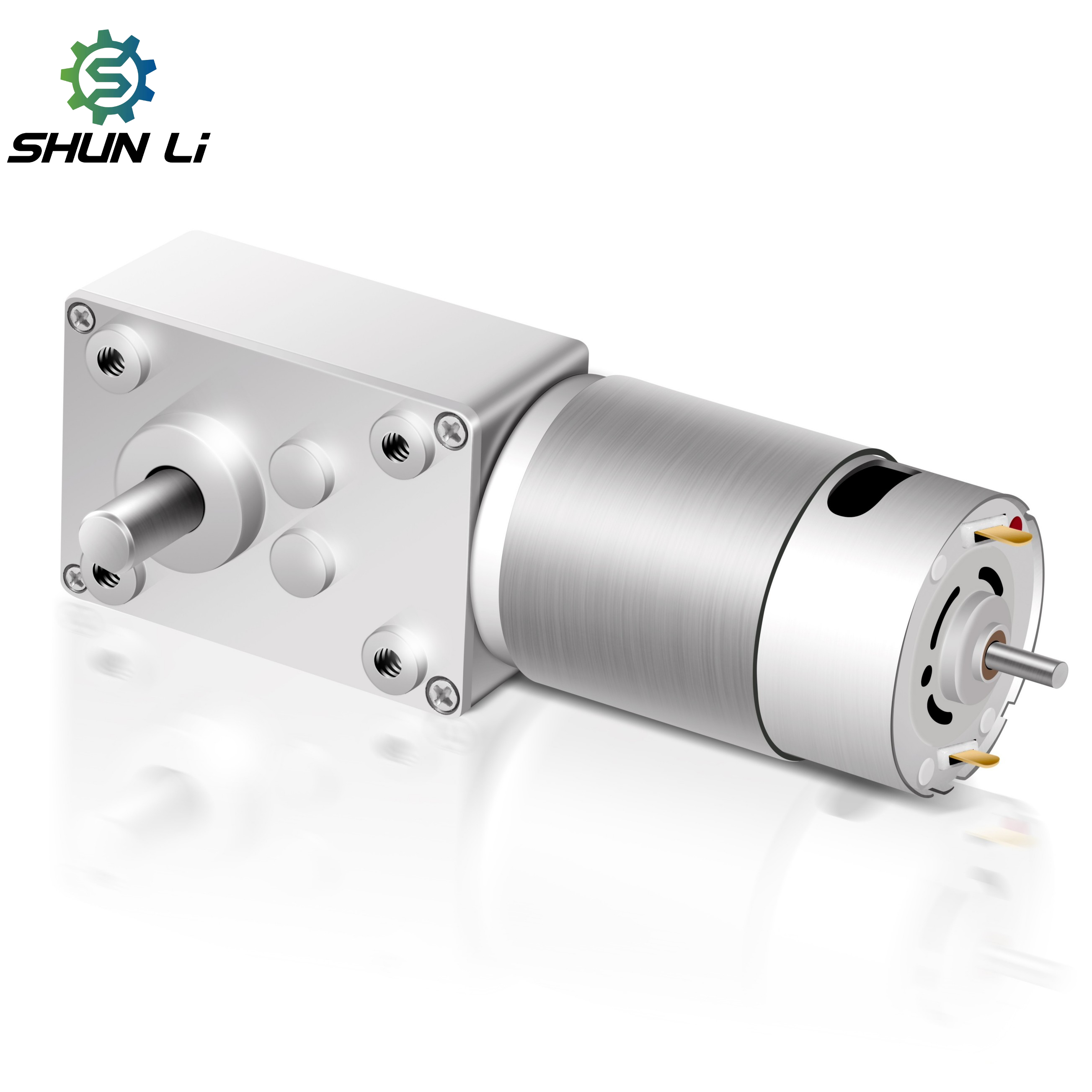

Product Model Detail
Product Model GM58EM545/555/575
Gearbox Length 58±0.5MM
Speed 92RPM~190RPM
Voltage 24V
Torque 0.65N.m/0.35N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized
⚙

Technical Dimensions

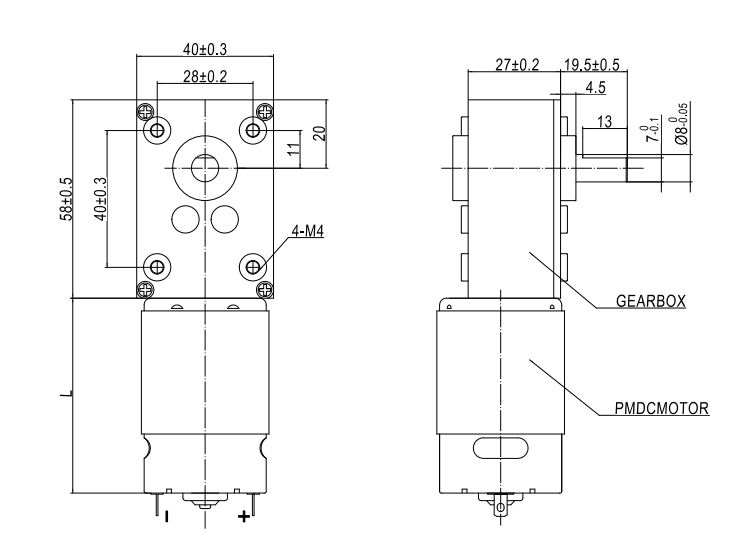

Motor Dimensions
📈

Performance Curve

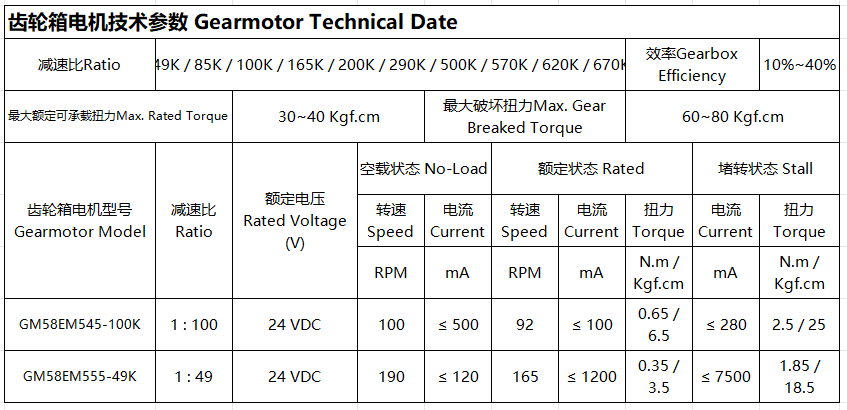

Performance Chart
🖼

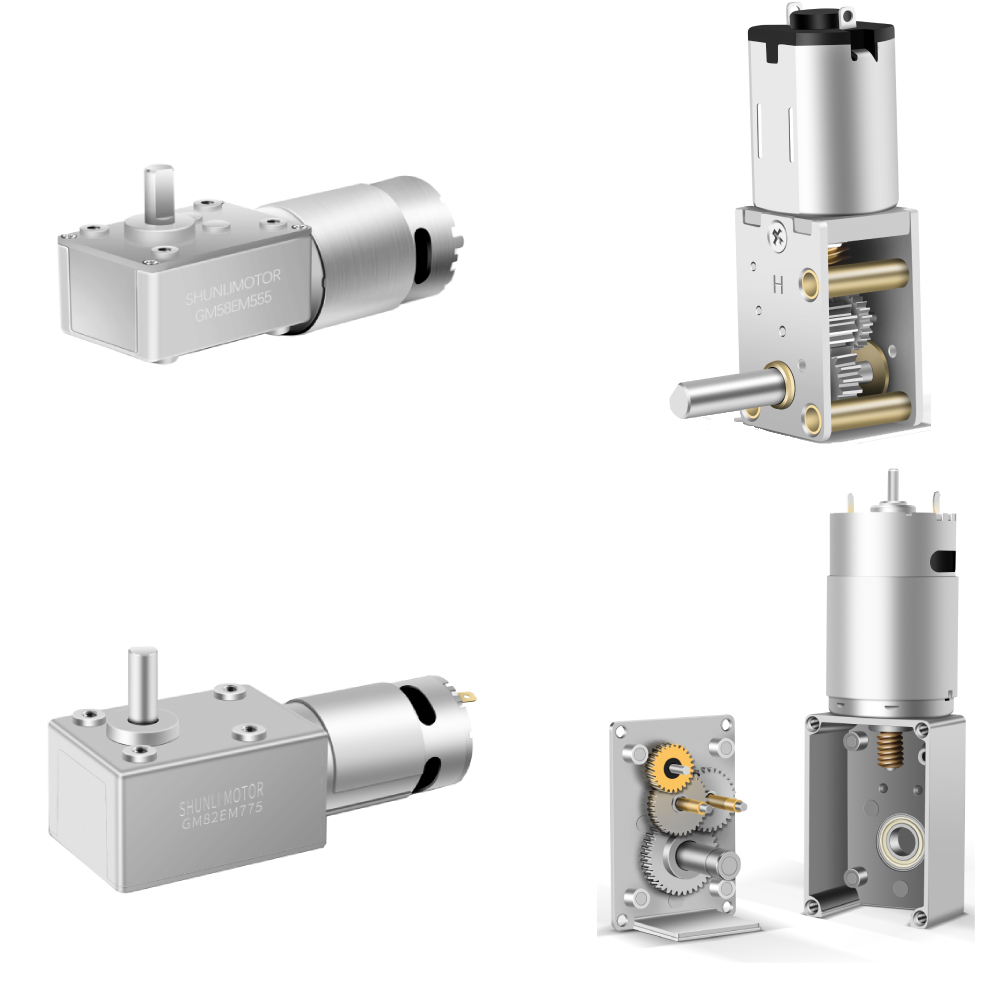

Product Showcase

?

Frequently Asked Questions

Are you a trading company or manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
What are the payment terms for new customers?
We can facilitate Ali Assurance Orders online, allowing payment via Master Card, Visa, etc. Customers can also use PayPal or TT for transactions.
Can you customize a motor if I cannot find a suitable one?
Yes, we can customize a suitable motor based on your specific technical requirements and parameters.
What certifications do your motors hold?
Our products are certified with CE, FCC, ISO, and other relevant standards. We can apply for additional certificates if required.
How is your Quality Control process managed?
We employ professional inspection staff on every production line. Once assembly is complete, we use dedicated machinery to ensure performance and durability.
What testing equipment is used for quality assurance?
Our testing facility includes Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
