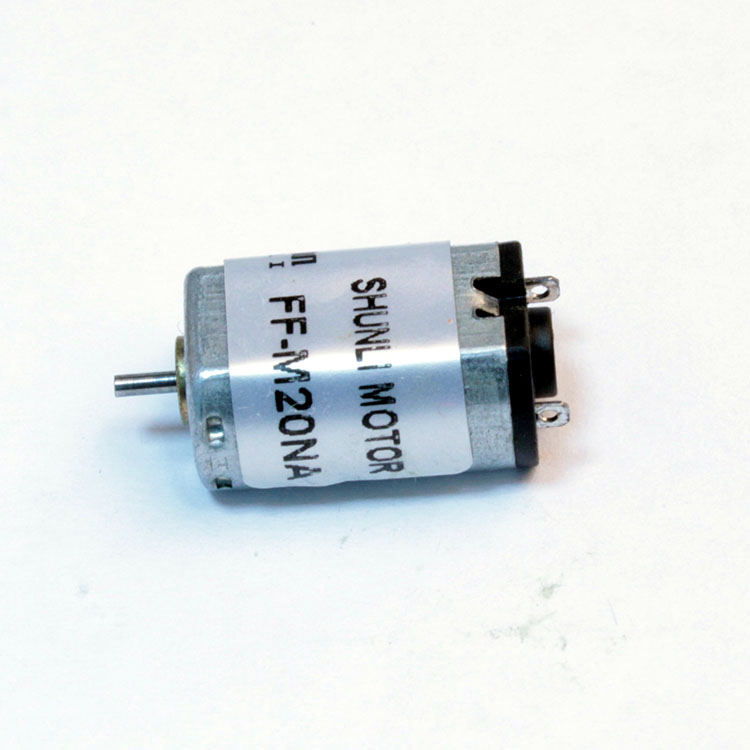

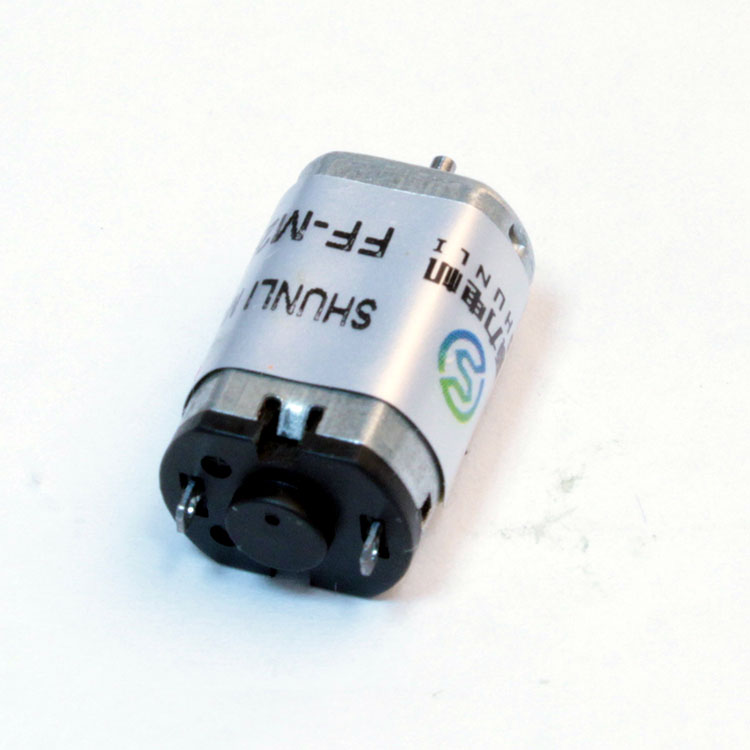

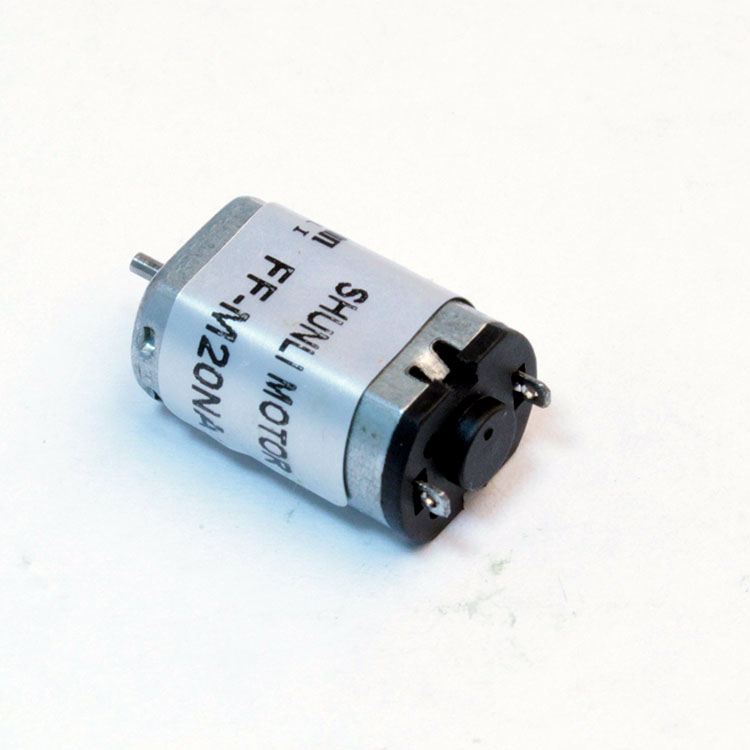

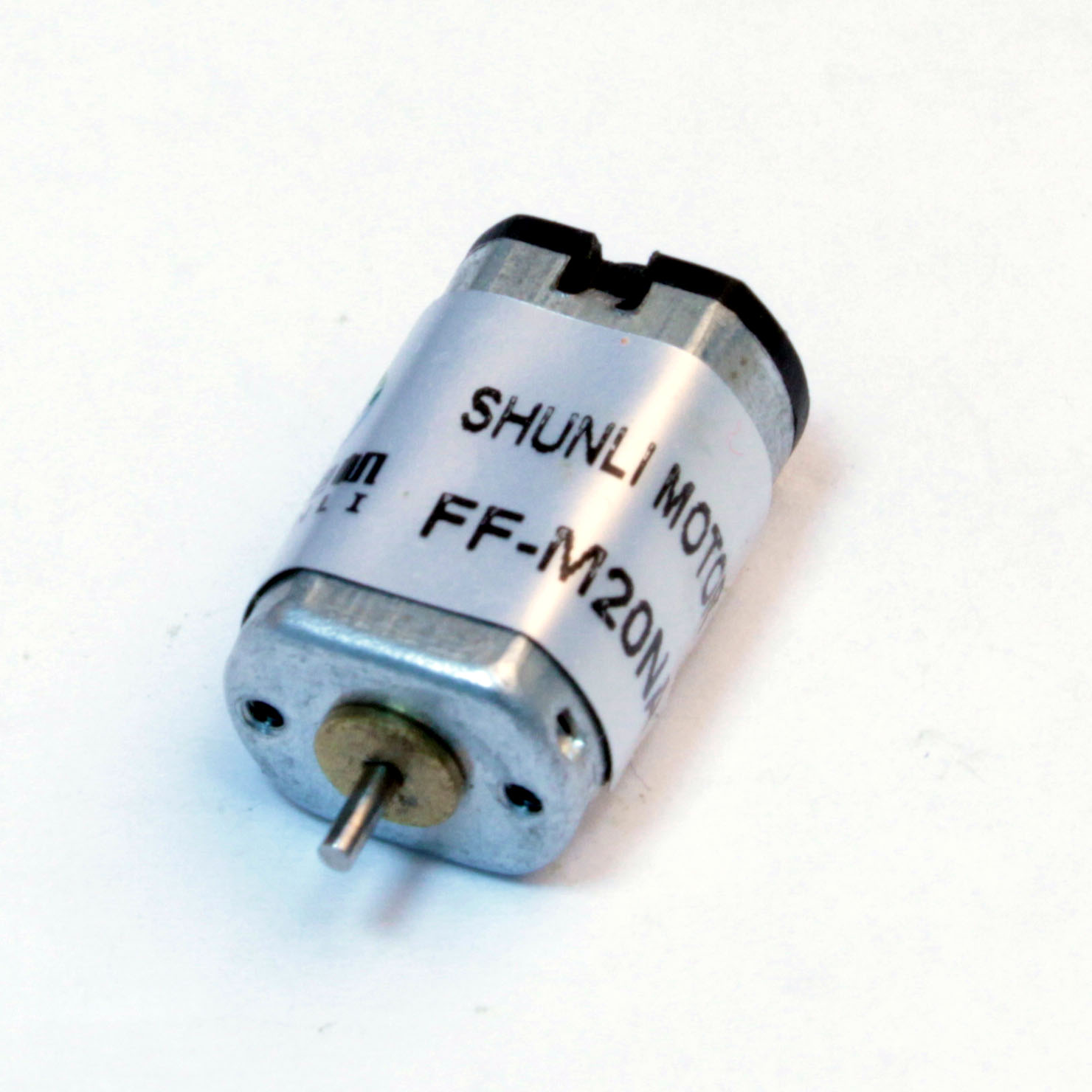

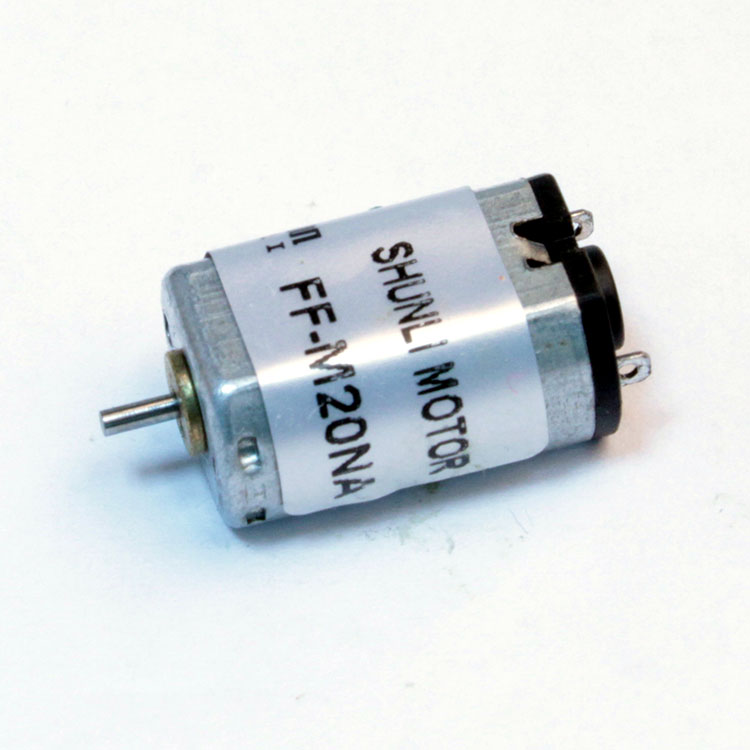

Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance

Product Description

Promotion
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance

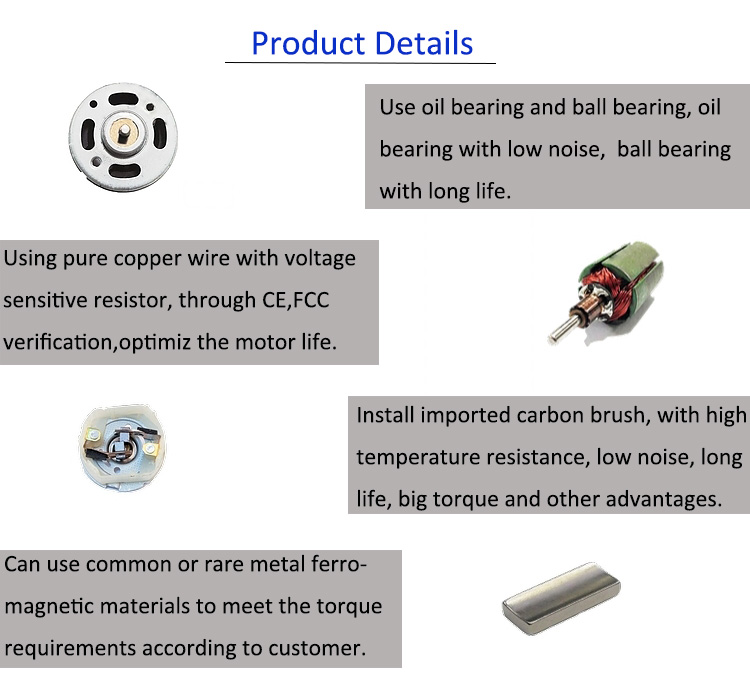

Product Description
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance
PMDC MOTOR Technical Data
PMDC MOTOR Model Rated Voltage (V) No-Load Rated Stall
Operating Range Nominal Speed Current Speed Current Torque Power Current Torque
RPM mA RPM mA mN.m / gf.cm W mA mN.m / gf.cm
FF-M20VA 8130 2.0~3.0 3VDC 15200 45 11800 160 0.16/1.6 0.19 550 0.69/7
7170 1.5-3.0 2VDC 8000 25 6000 75 0.09/0.9 0.06 230 0.35/3.6
10100 1.5~4.0 2.8VDC 18000 50 14800 190 0.2/2 0.3 880 1.1/11
Application
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance
Our Company
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance

We are a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor since 2005. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures. Our products are exported to more than 50 countries and regions at home and abroad.

Production Process
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance
Certifications
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance

Our company has introduced dozens of advanced production equipment and testing instruments from Germany, Japan, Switzerland and other countries to strictly control the quality of each motor.

FAQ
Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for over 14 years.
What is the payment term for new customers?
We support online assurance orders which can be paid with Mastercard, Visa, etc. Customers can also pay with PayPal, TT, and other methods.
Can you customize the motor if I cannot find a suitable model?
Yes, we can customize suitable motors according to our customers' specific requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other certifications. We can apply for other certificates if you have specific requirements.
How do you manage Quality Control?
We have professional checking staff on every production line process. Finished motors undergo full testing using quality equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers.
What operating voltages are supported by your micro DC motors?
Our micro DC motors typically support operating ranges within 1.5V, 3V, and up to 4.0V depending on the technical specifications.
