Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox
Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox
Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox
Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox
Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox
1 / 5
Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox
Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox
Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox
Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox
Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox

Shunli Customizable Bldc 24v Dc Drill Gear Motor Brush Mini 12mm Planetary Gearbox

Send Inquiry

Product Description

Product Display

Technical Specifications

Motor Details
Product Model GMP12PMN10/N20/N30
Gearbox Length 19.7±0.5mm
Speed 65RPM-205RPM
Voltage 4.6V/4.5V/12V
Torque 0.2~0.5 mN.m
Customization The Transmission Dimensions And Motor Parameters Can Be Customized

Dimensions & Performance Curve

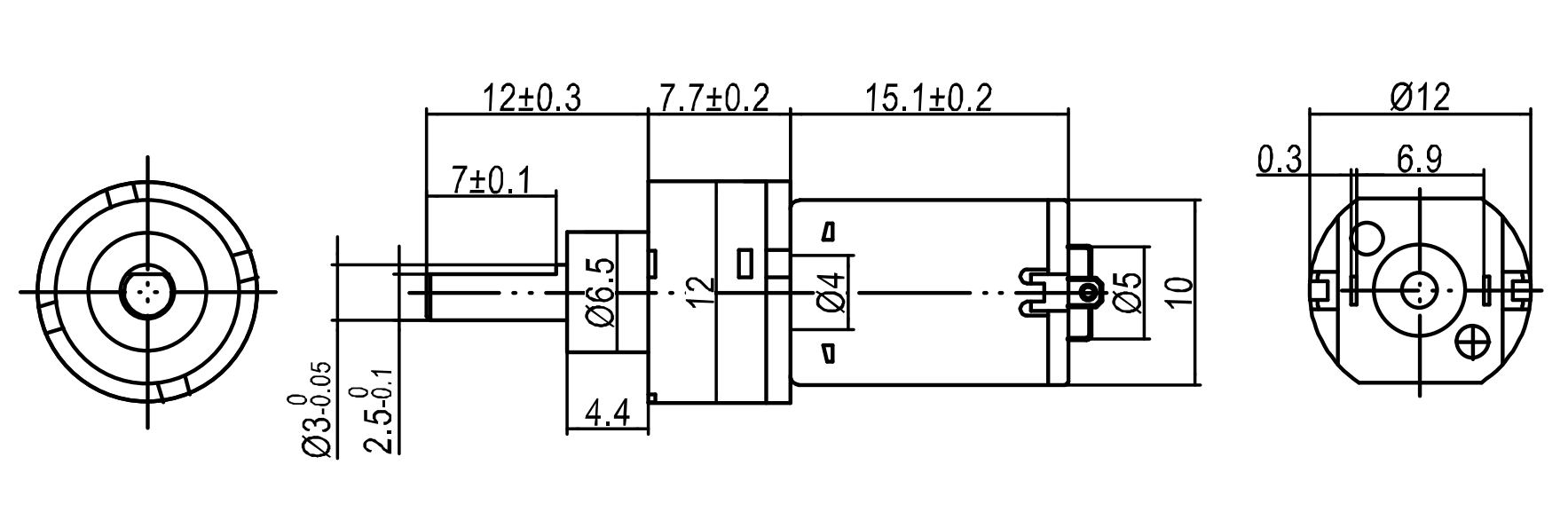

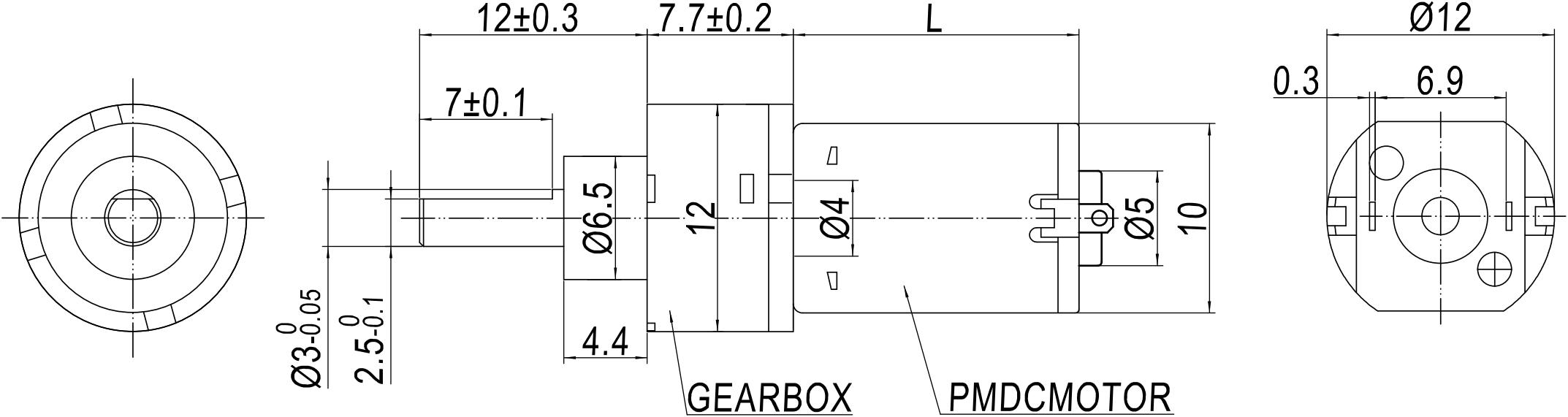

Product Dimensions

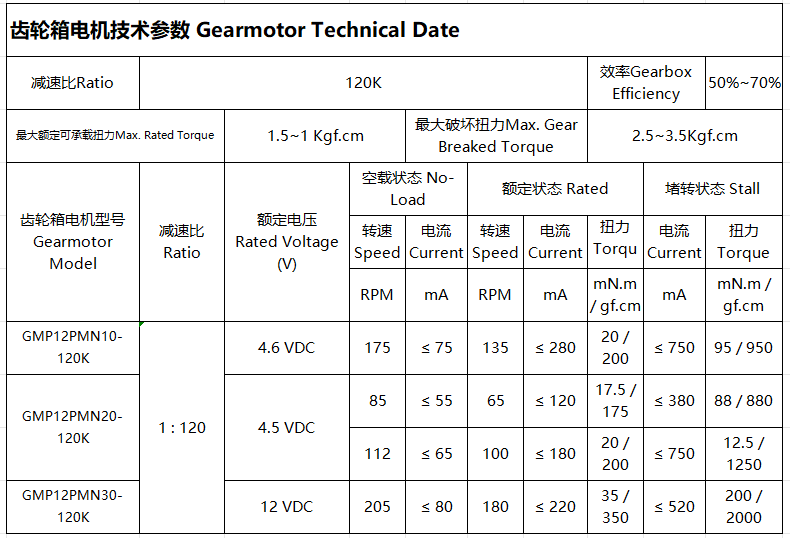

Performance Curve

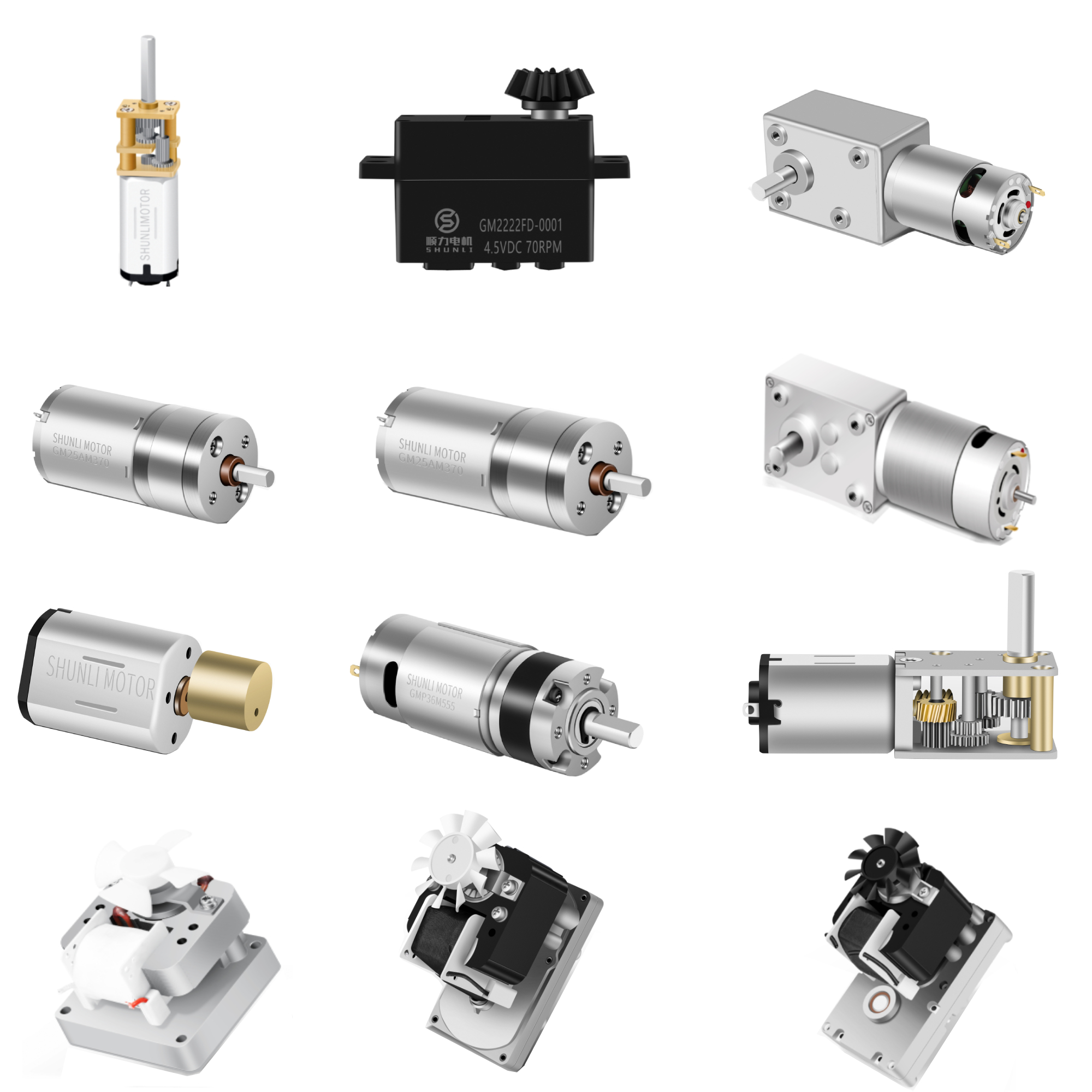

Product Gallery

Gallery Image 1
Gallery Image 2
Gallery Image 3
Gallery Image 4
Gallery Image 5
Gallery Image 6

Frequently Asked Questions

Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
What are the payment terms for new customers?
We can process Assurance Orders online, which allow payment via Master Card, Visa, etc. Customers can also pay with PayPal or TT.
Can you customize a motor if I can't find a suitable one on the website?
Yes, we can customize a suitable motor according to our customer's specific requirements.
Do you have international certificates for the motors?
Yes, we have CE, FCC, ISO, and other relevant certificates. We can apply for additional certificates if required.
How is your Quality Control managed?
We have professional checking staff on every production line. Finished motors undergo testing with specialized machines, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
