Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
1 / 4
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project

Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project

Send Inquiry

Product Description

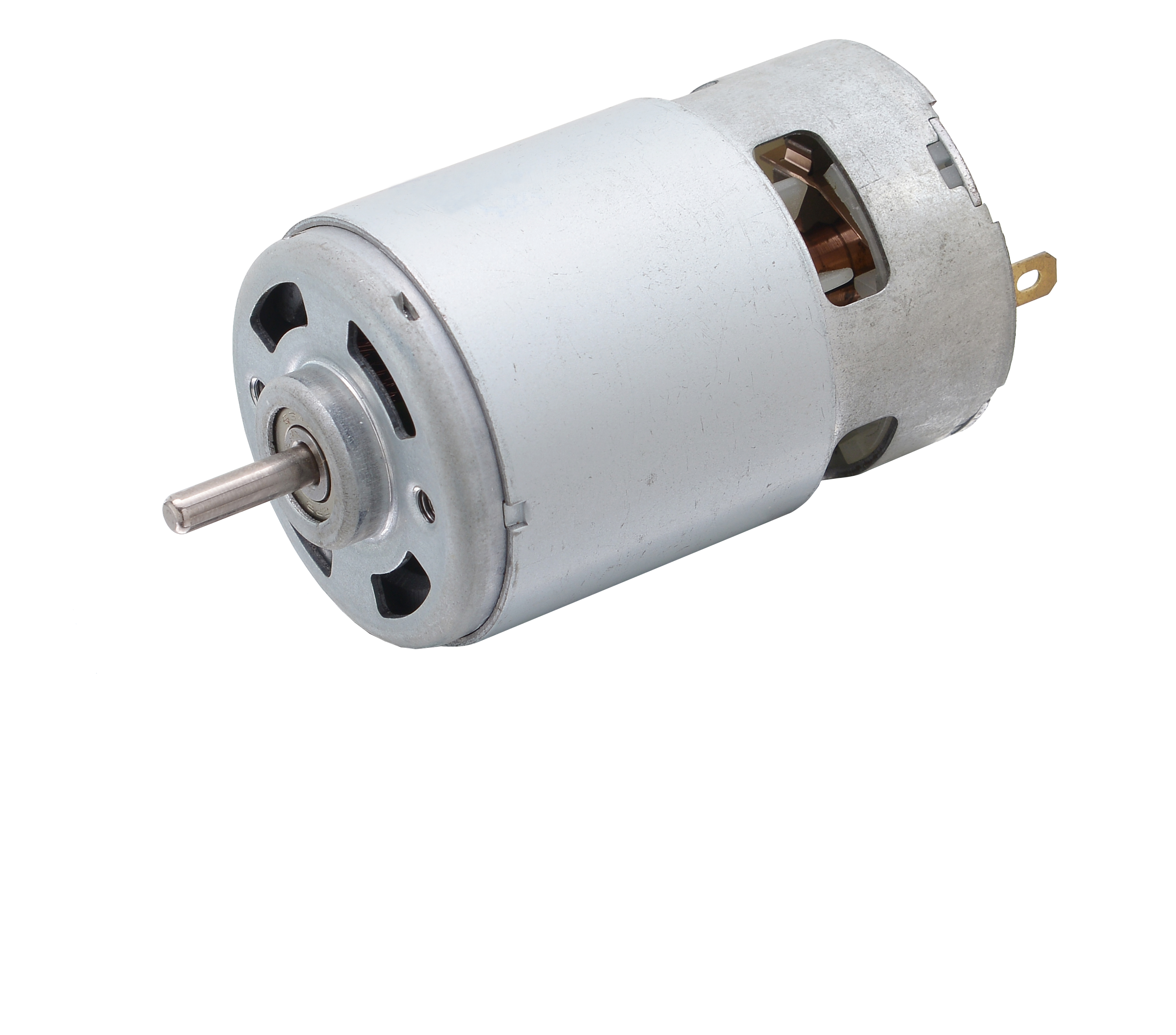

Motor Product Overview

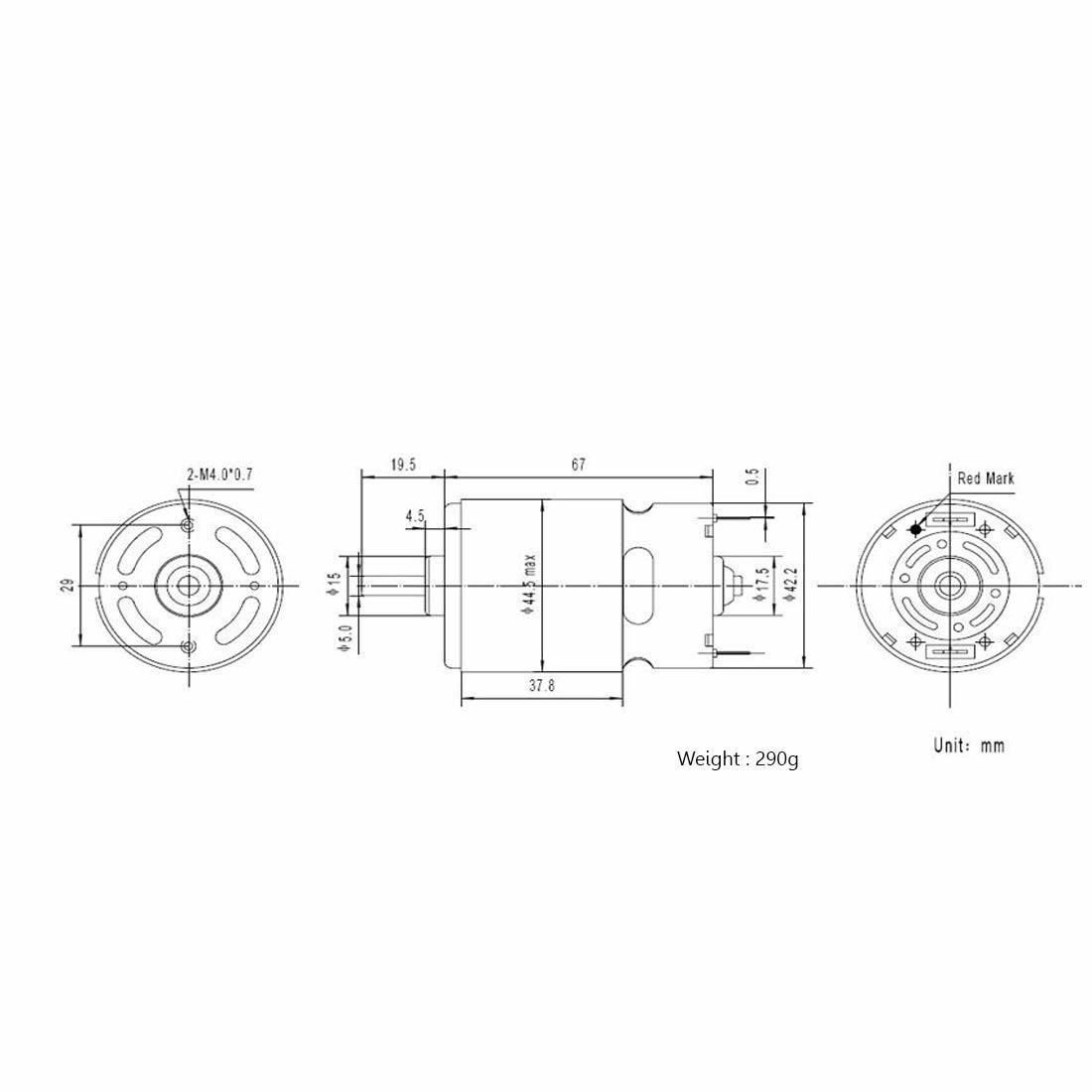

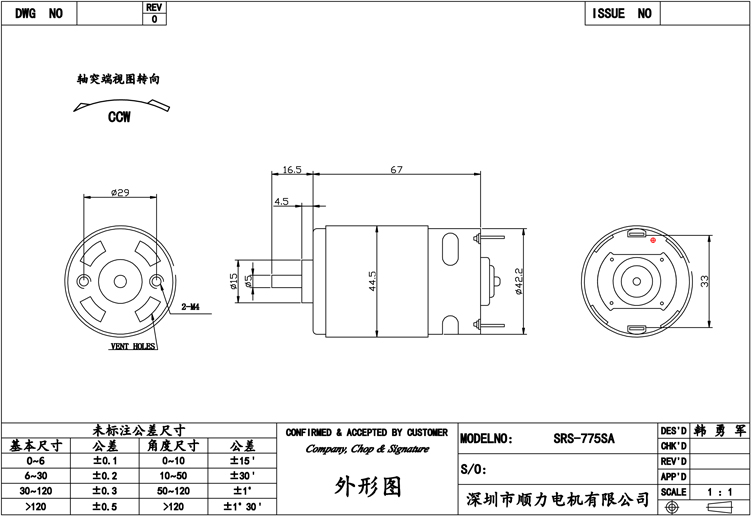

Technical Drawing
⚙️ Technical Parameters
Product Model 7 Series
Motor Diameter 7 Series: 420.3 mm (With protecting ring: 45 mm)
Motor Length 755 motor: 59mm | 775 motor: 66 mm
Motor Voltage 7.2 - 48V DC
Motor Speed 3000 - 20000 RPM
Motor Shaft Standard 5mm D-shaft (Customizable length/shape)

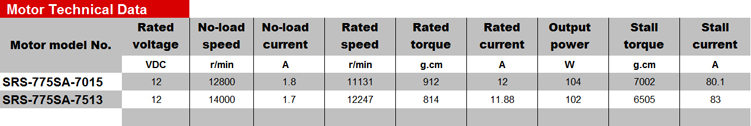

Motor Performance
Product Quality
Frequently Asked Questions
Q1: Are you a trading company or a manufacturer?
We are a specialized factory focusing on micro DC motors and DC gear motors with over 14 years of industry experience.
Q2: What payment methods are available for new customers?
We support multiple payment options including online assurance orders (Visa, MasterCard), PayPal, and TT (Telegraphic Transfer).
Q3: Can you customize a motor if I can't find a suitable model?
Yes, we provide customization services to adjust motor specifications according to your specific requirements.
Q4: What certifications do your motors hold?
Our products are certified with CE, FCC, and ISO. We can also apply for other specific certifications if required.
Q5: How do you ensure product quality control?
We utilize professional inspection staff and advanced machinery including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Life Testers to ensure every motor meets high standards.
Q6: What is the standard lead time for customized orders?
Lead times vary depending on complexity, but we maintain efficient production lines to ensure timely delivery of both standard and customized solutions.
