China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
1 / 5
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate

China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate

Send Inquiry

Product Description

Product Banner

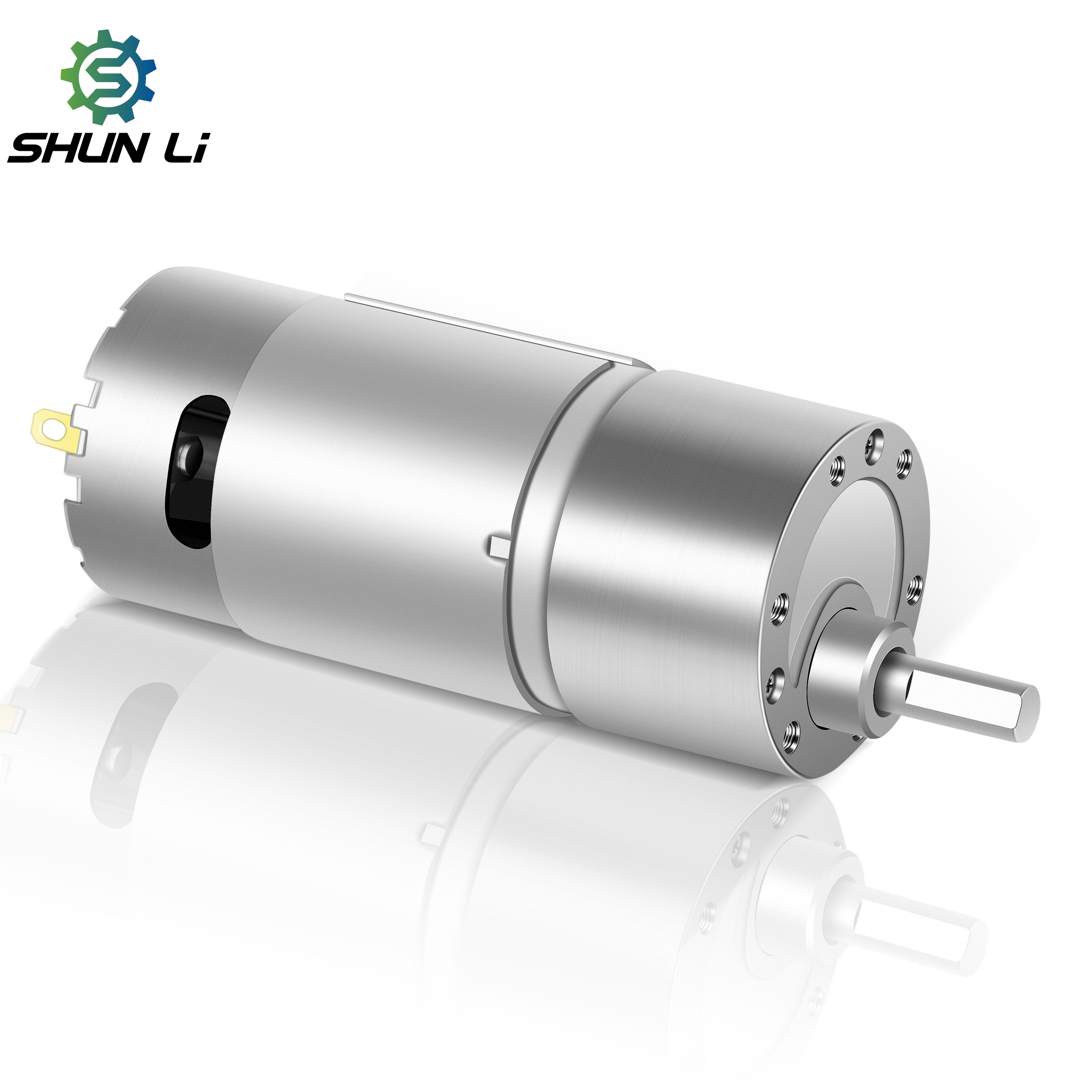

DC Gear Motor
⚙️ Technical Specifications
Product Model GM37BM545/555/575
Gearbox Length 50mm-65mm
Speed 17.5RPM-240RPM
Voltage 24V/24V/12V
Torque 0.85 N.m/1.8 N.m/2.0 N.m
Support Customization Dimensions and motor parameters can be customized
📐 Dimensional Drawings & Performance Curves

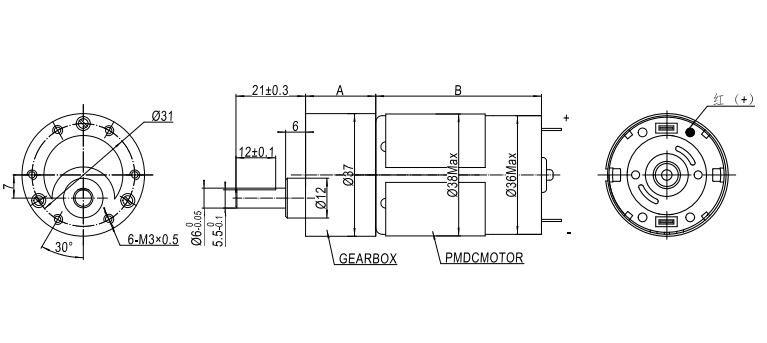

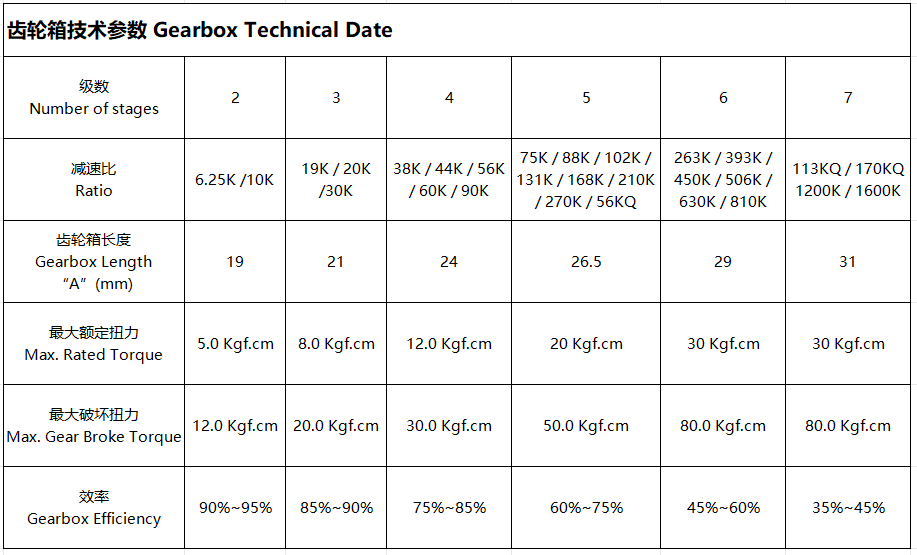

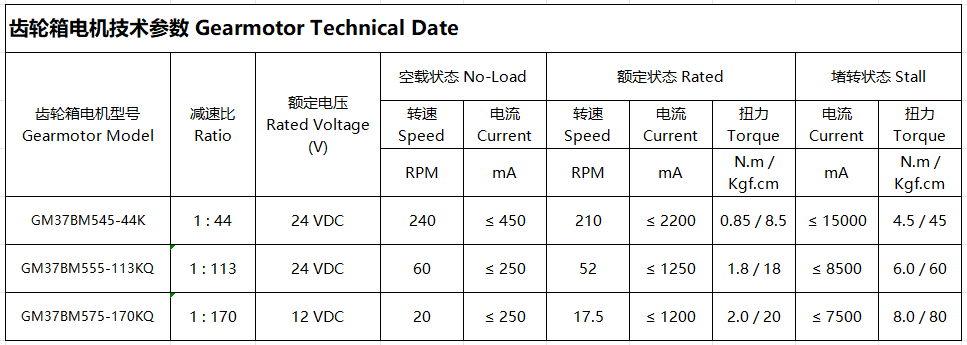

Motor Dimension Drawing Motor Performance Data Product Schematic

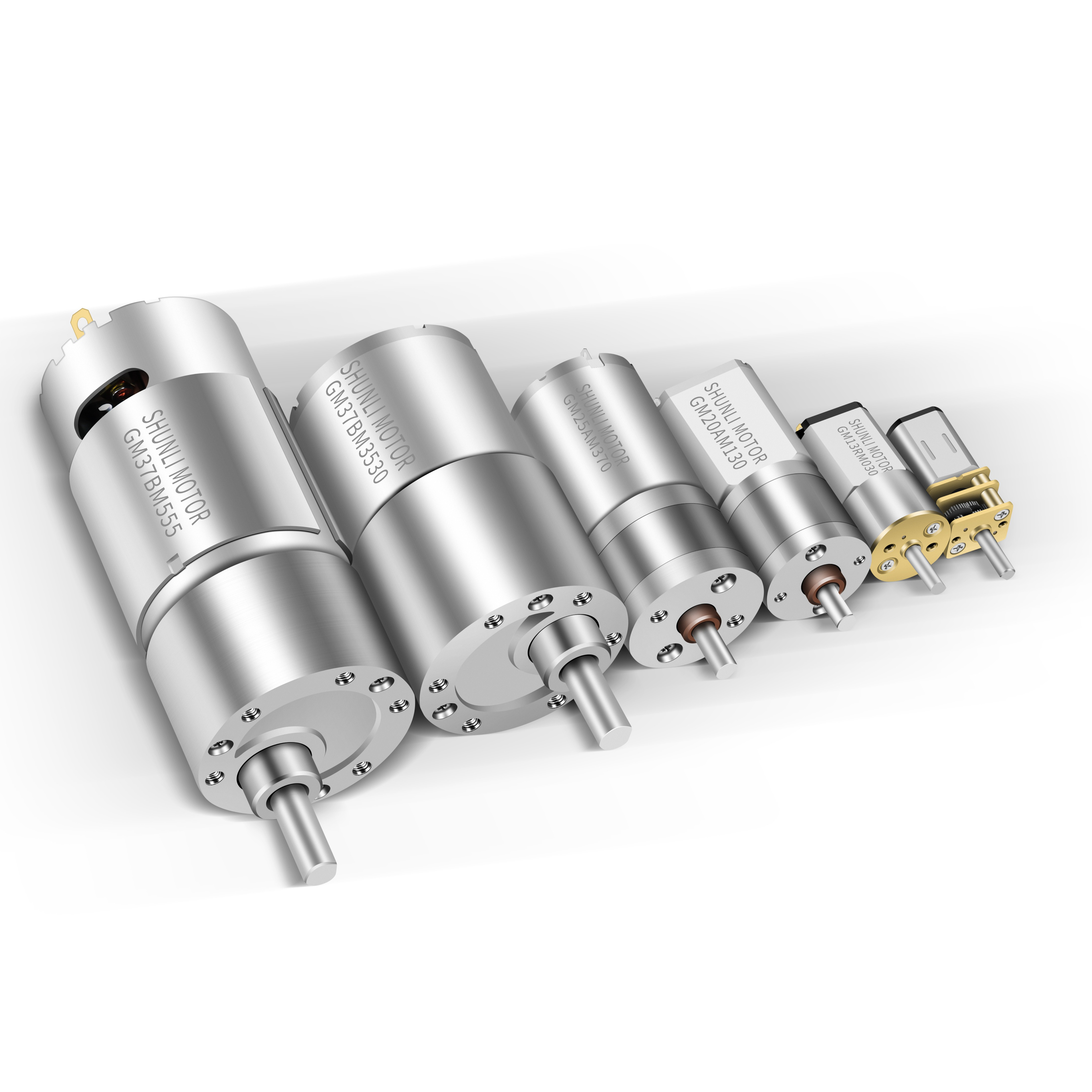

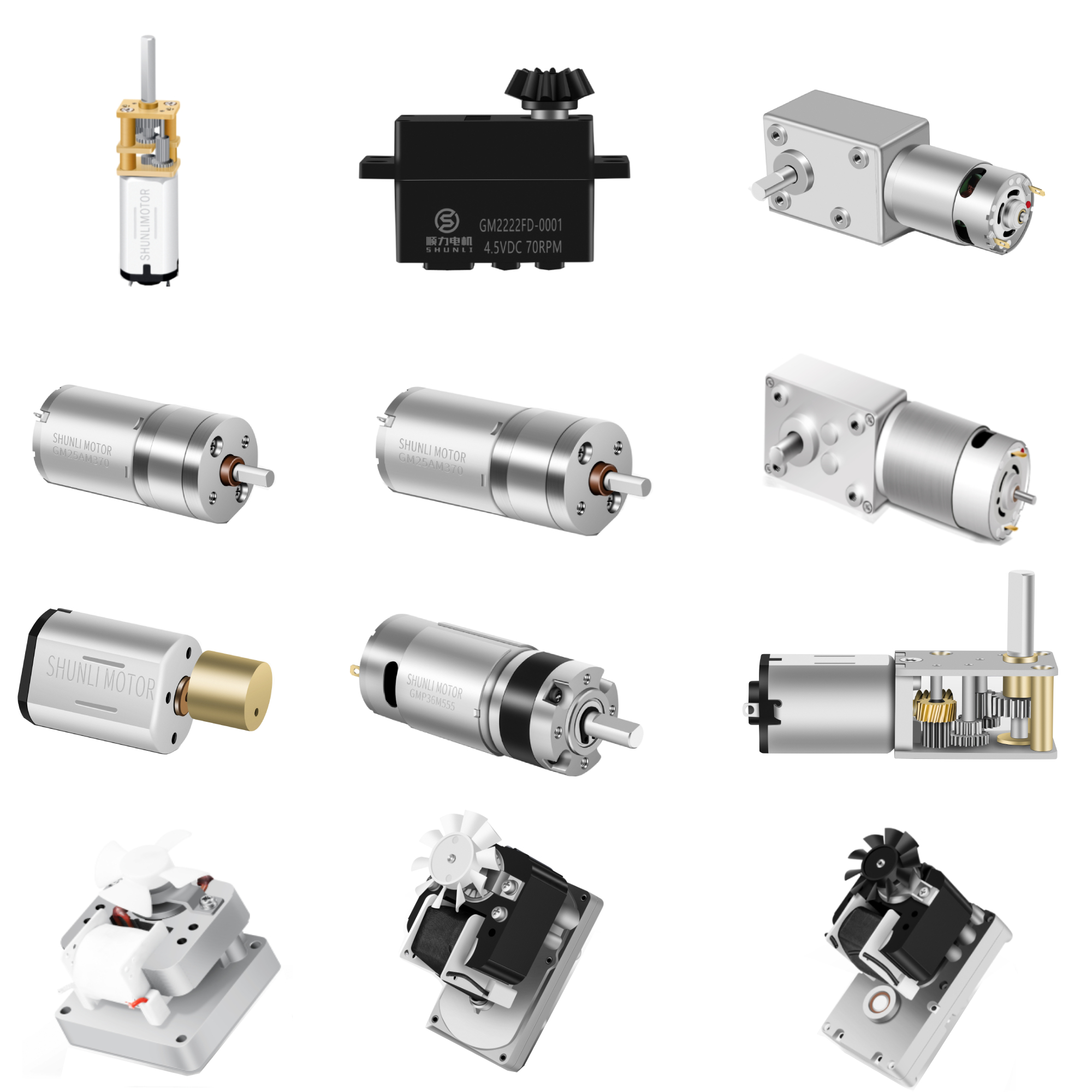

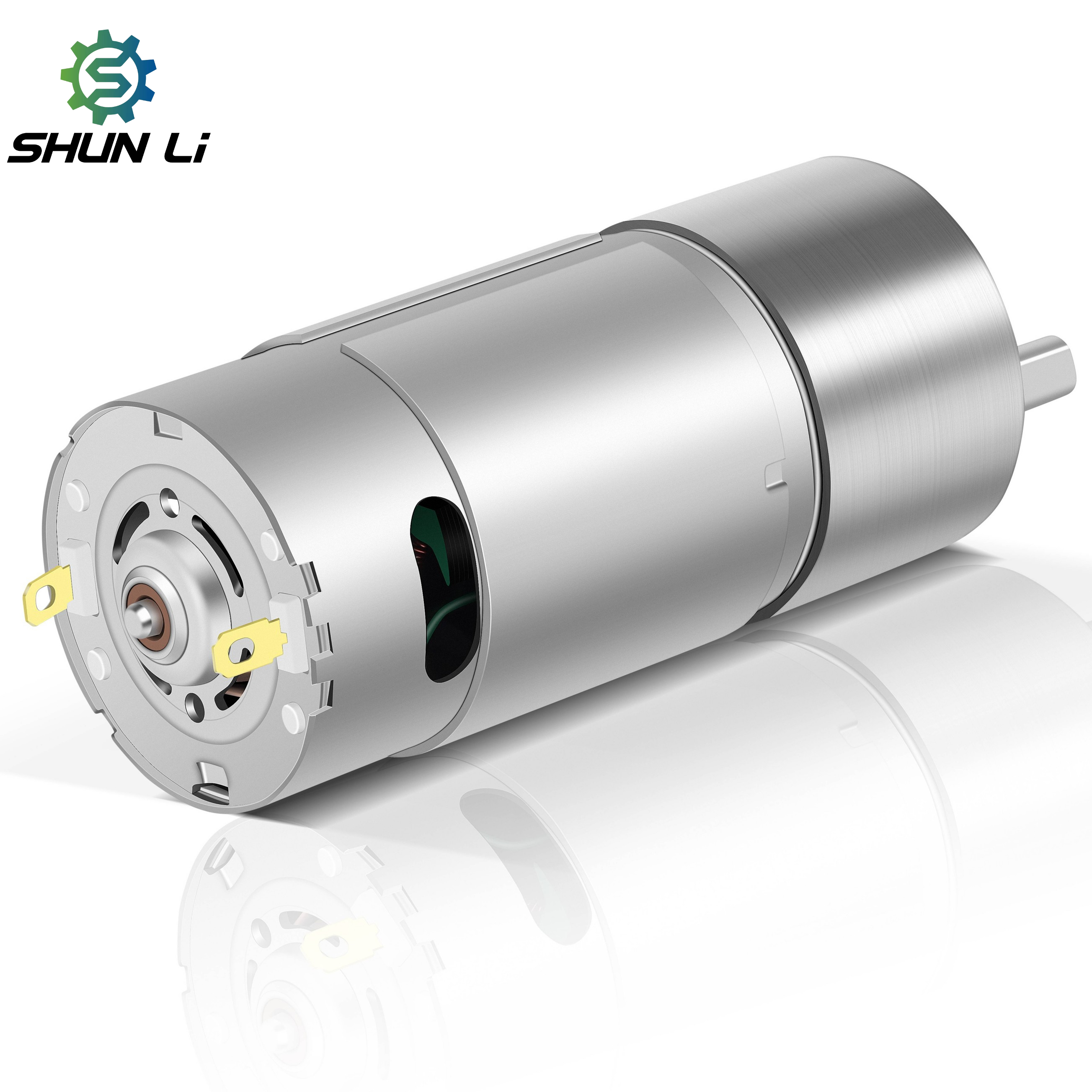

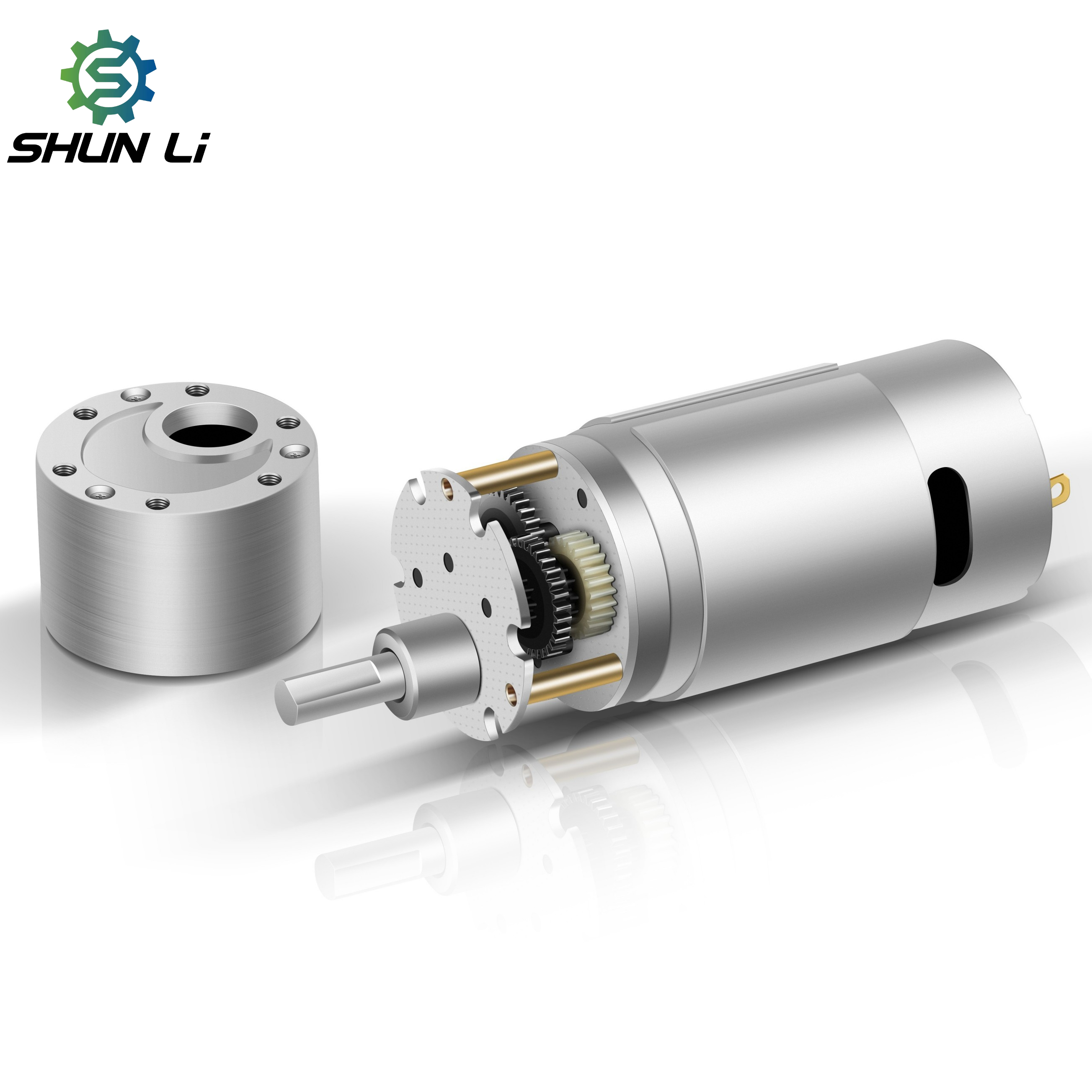

📸 Product Gallery
Motor Detail 1
Motor Detail 2
Motor Detail 3
Motor Detail 4
Motor Detail 5
Motor Detail 6

Frequently Asked Questions

1. Are you a trading company or manufacturer? We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
2. What is the payment term for a new customer? We can draw up an Assurance Order online for new customers, which can be paid via Master Card, Visa, etc. Customers can also pay with PayPal or TT.
3. Can you customize a motor for me? Yes, if you can't find a suitable motor on our website, we can customize parameters and dimensions according to your specific requirements.
4. Do you have certificates for the motors? Yes, we have CE, FCC, ISO, and other standard certifications. If you require specific certificates, we can apply for them on your behalf.
5. How do you handle Quality Control? We have professional checking staff on every production line. After assembly, we use advanced testing equipment including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise testers to ensure quality.
6. What testing equipment is used for quality assurance? Our facility is equipped with Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers to guarantee motor reliability.
