28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
1 / 4
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v

28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v

Send Inquiry

Product Description

Product Presentation

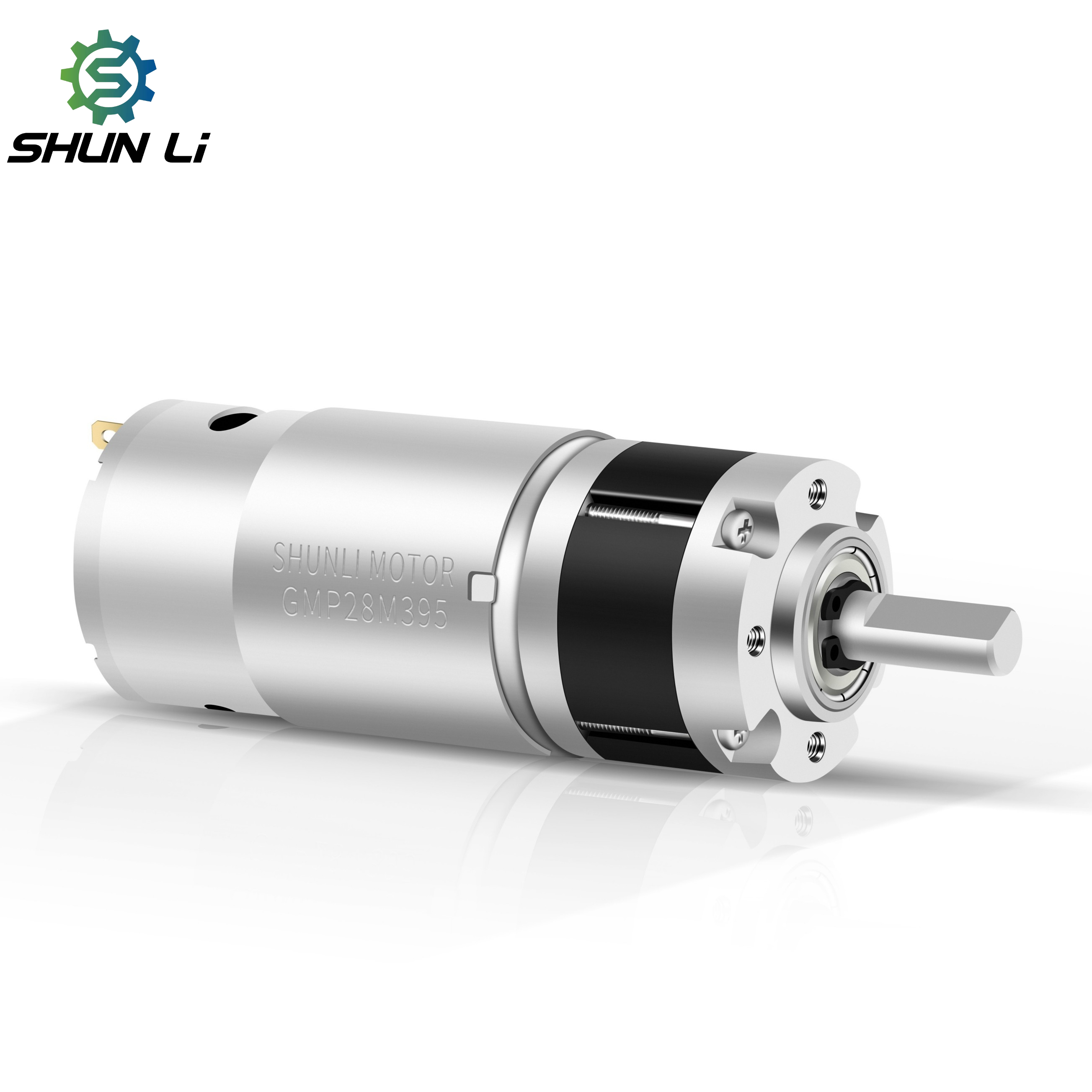

Gear Motor Detail
Product Model GMP28M365/385/395
Gearbox Length 21.7~44.8mm
Speed 23.5RPM-885RPM
Voltage 12V
Torque 0.36 N.m / 0.06 N.m / 1.5 N.m
Customization Transmission Dimensions and Motor Parameters Can Be Customized

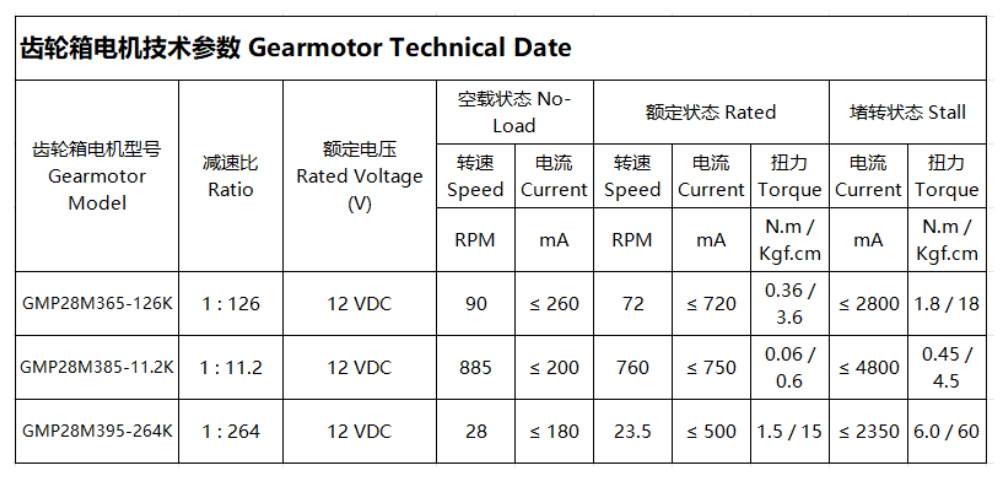

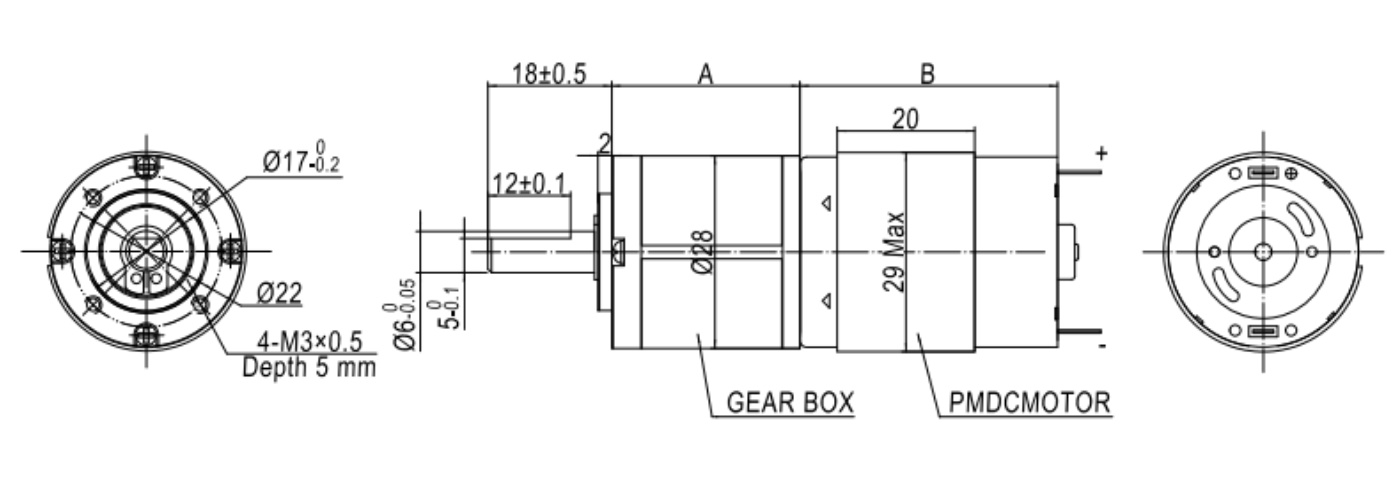

Technical Drawing Performance Chart
Production Detail 1 Production Detail 2 Production Detail 3 Production Detail 4 Production Detail 5 Production Detail 6
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a professional factory specializing in micro DC motors and DC gear motors with over 14 years of experience.
What is the payment term for new customers?
We support multiple payment methods including online Assurance Orders (Master Card, Visa, etc.), PayPal, and TT transfers to ensure a secure transaction.
Can you customize a motor if I can't find a suitable one on the website?
Yes, we provide full customization services to modify motor parameters and dimensions according to your specific requirements.
Do you have international certificates for your motors?
Yes, our products are certified with CE, FCC, ISO, and other relevant standards. We can also apply for specific certificates if required.
How do you ensure quality control?
We employ professional inspection staff at every production stage. Finished products undergo rigorous testing using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
What is the typical lead time for orders?
Lead times depend on the order volume and customization requirements. Please contact our support team for a detailed production schedule based on your needs.
